5 - 10W ( 500 - 900lm ) | 12V | HK LED, RGB, Amber
ZXL16
5 - 10W ( 500 - 900lm ) | 12V | HK LED, RGB, Amber

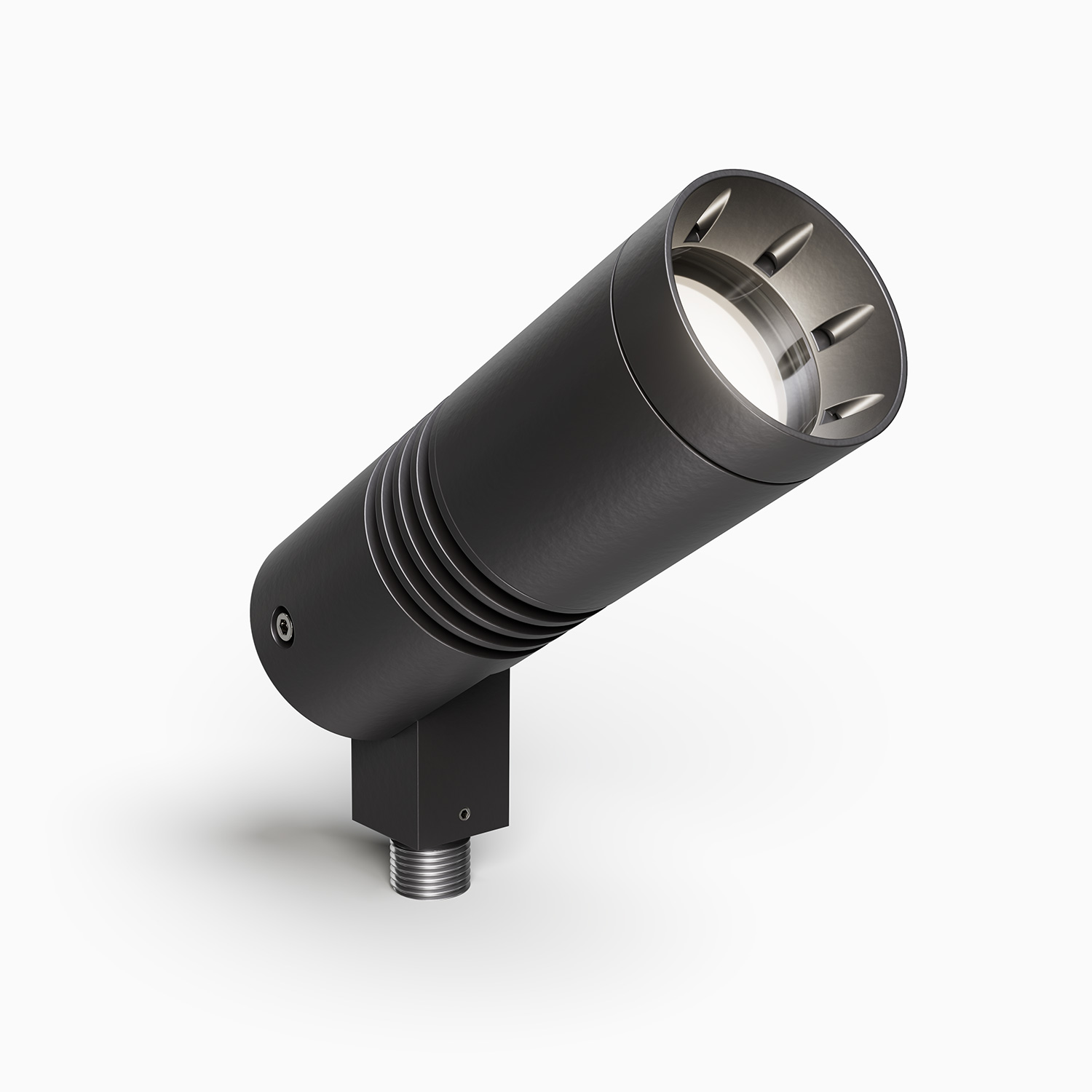

Our most versatile round, directional 12V LED modern accent light for architectural outdoor and landscape lighting environments.
(includes former ZXL16 & ZXL16-NF models)
FEATURES:
- 5W, 7W, 10W integrated HK LED delivering 500 to 900 lumens. 2200-4000K CCT, including specialty Amber and RGB options.
- Wet Location Listed, IP67 Standard.

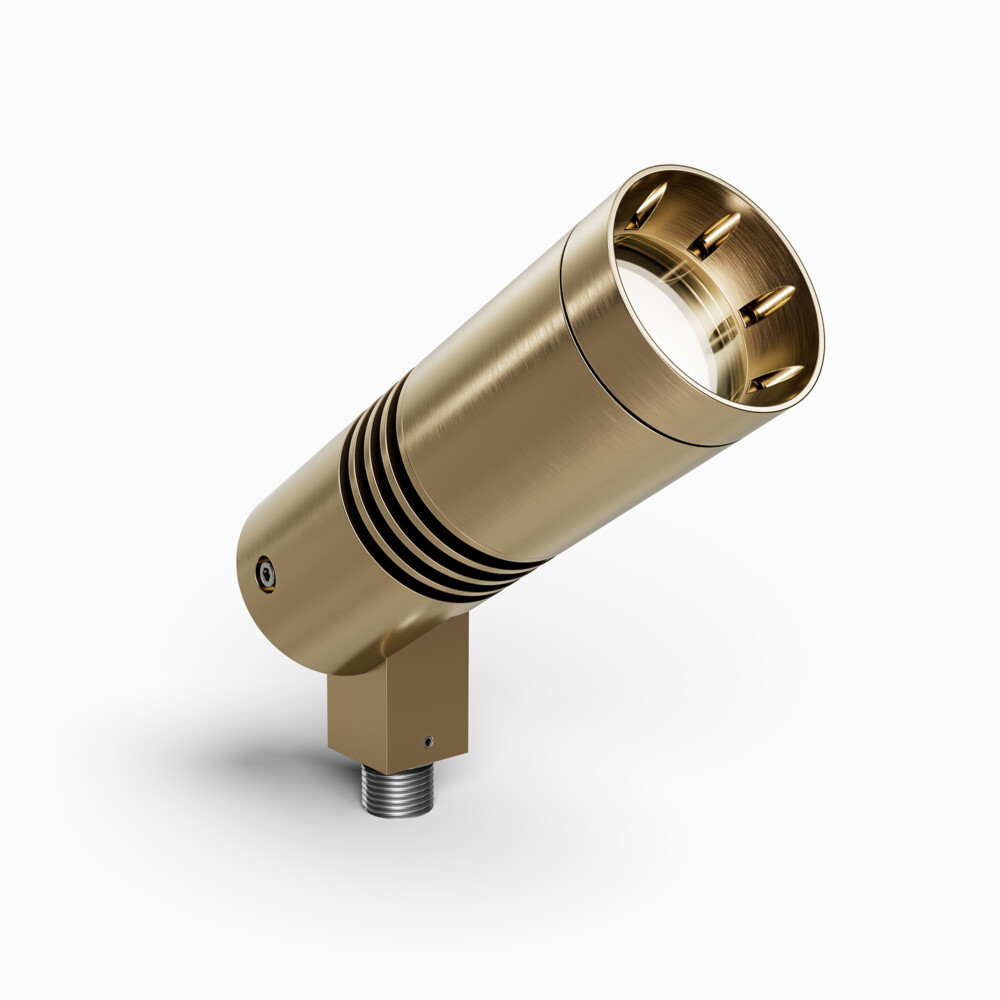

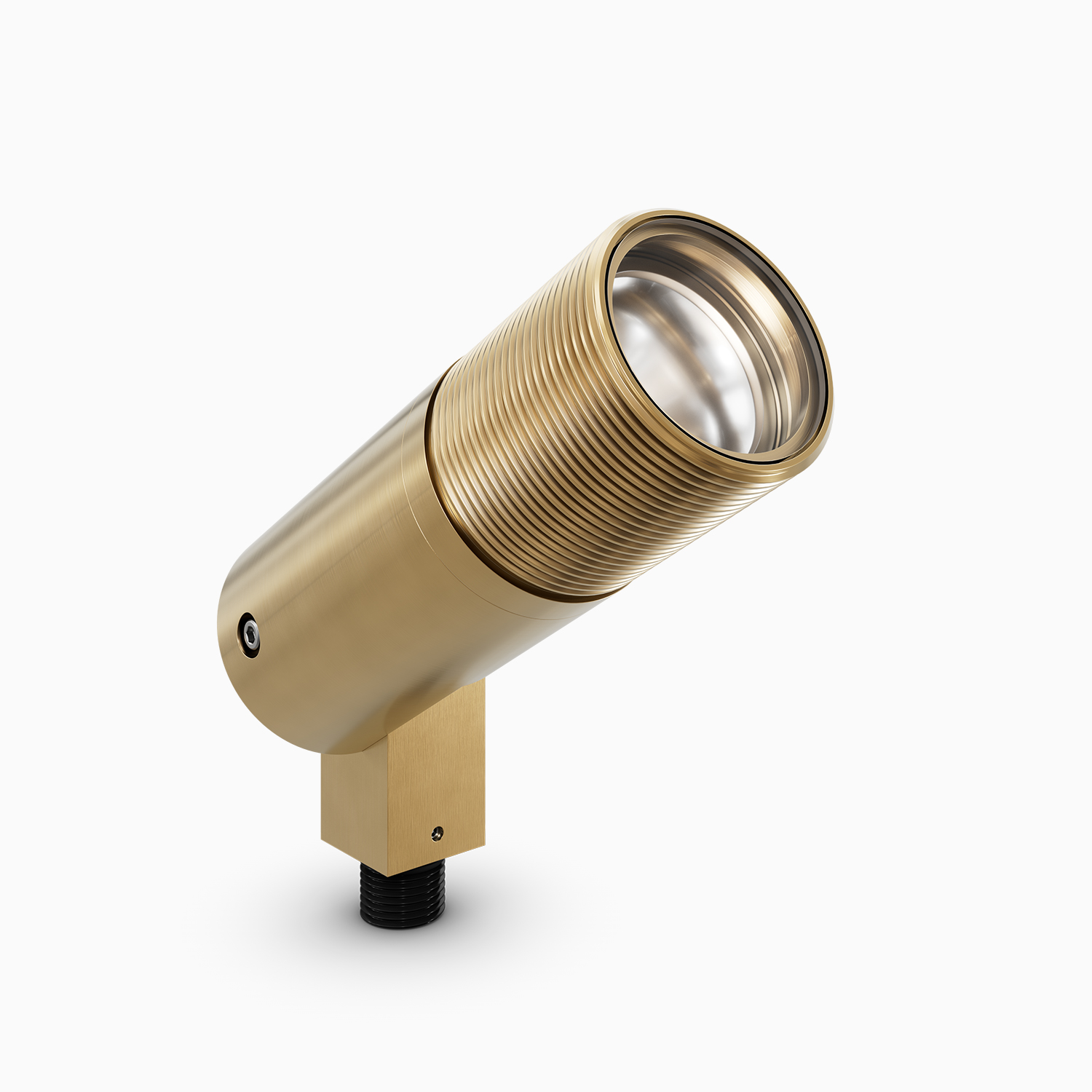

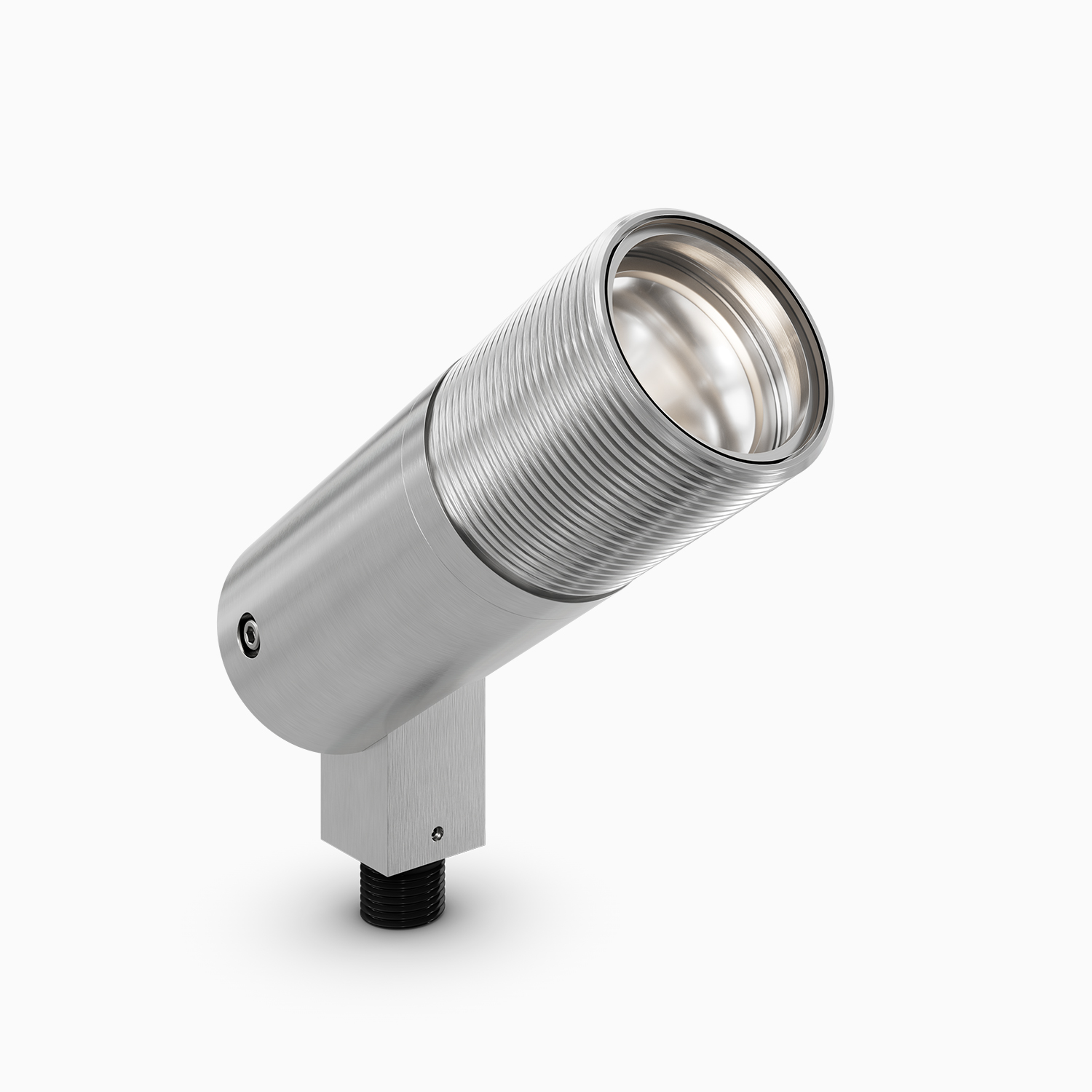

- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
- 240º vertical and 360º horizontal adjustment via locking swivel stem design.
- Modular components, field changeable LED optical beams, and lenses.
- Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
- Every fixture tested end of line for water tightness and light quality.

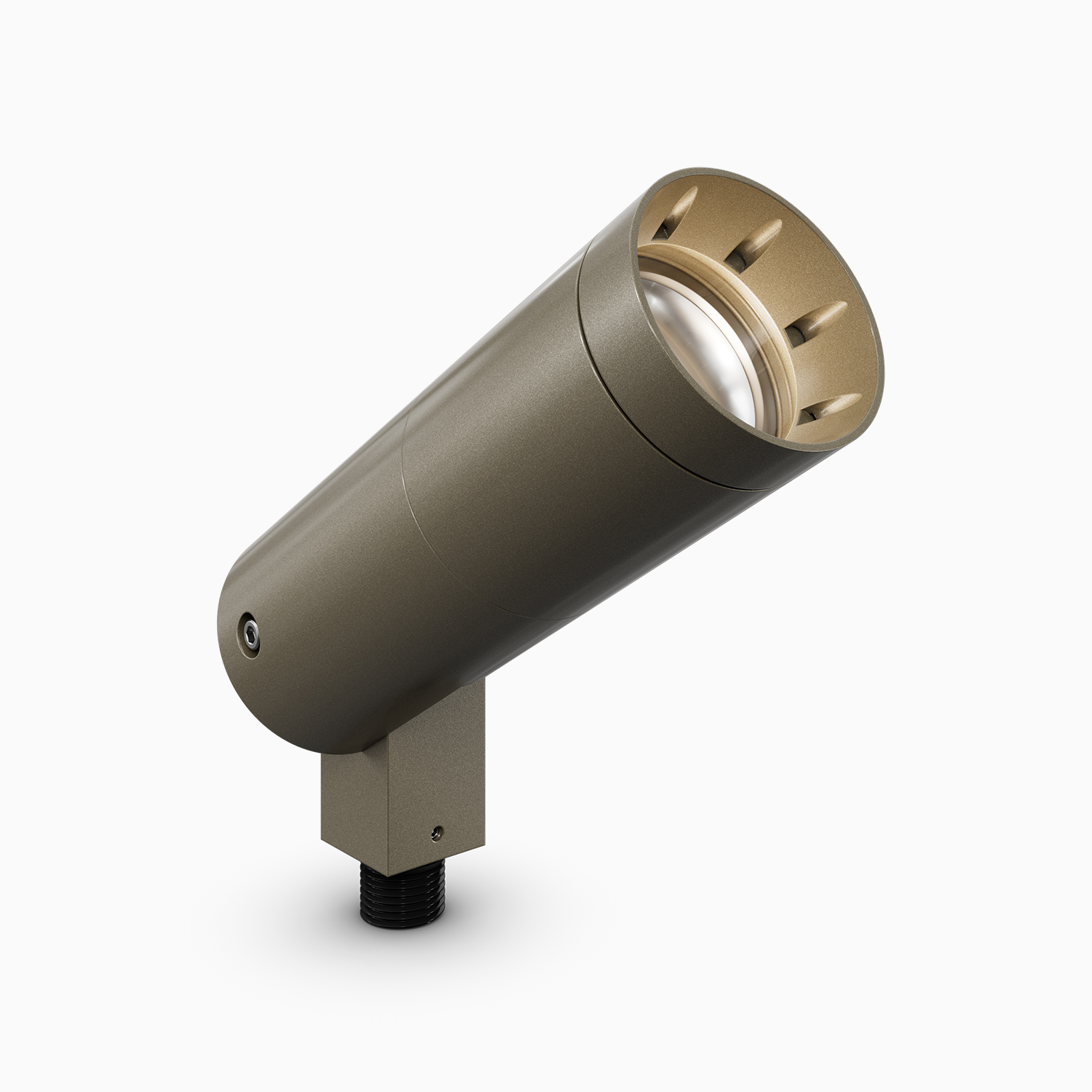

- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials

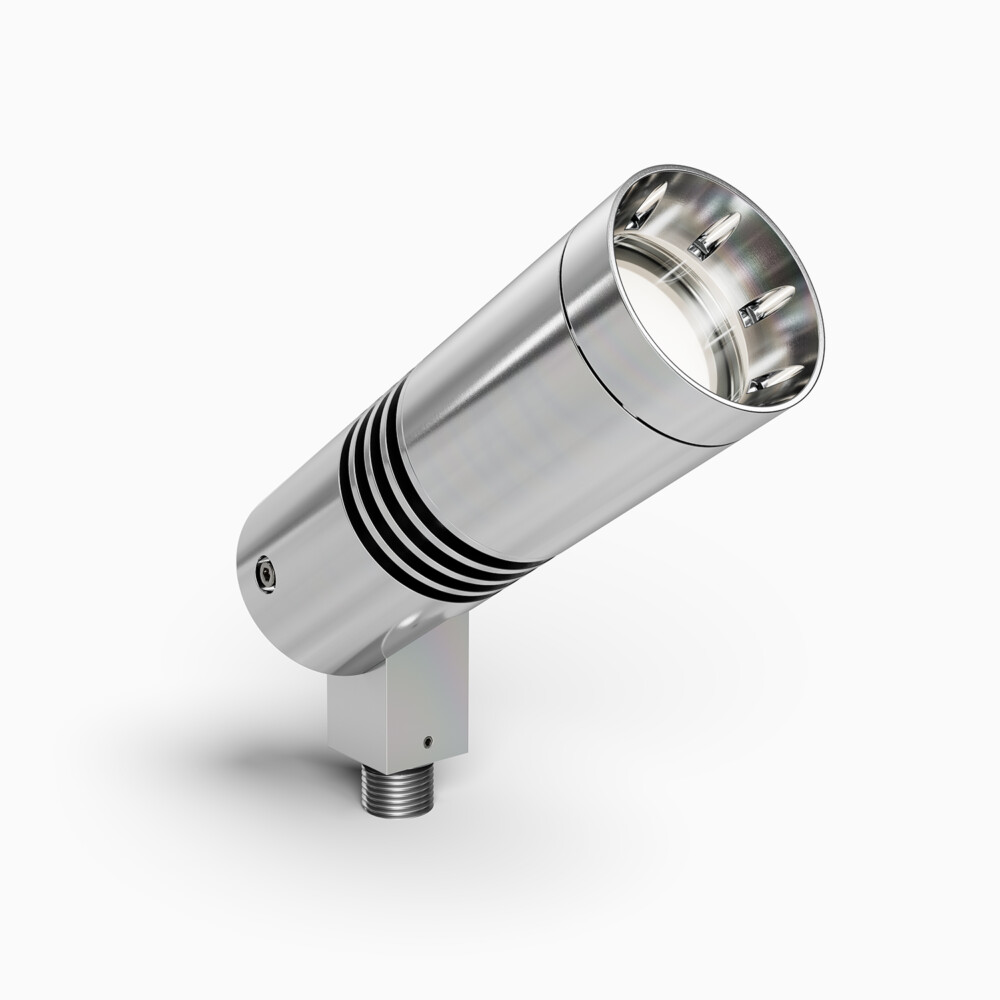

Machined from solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics
Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.

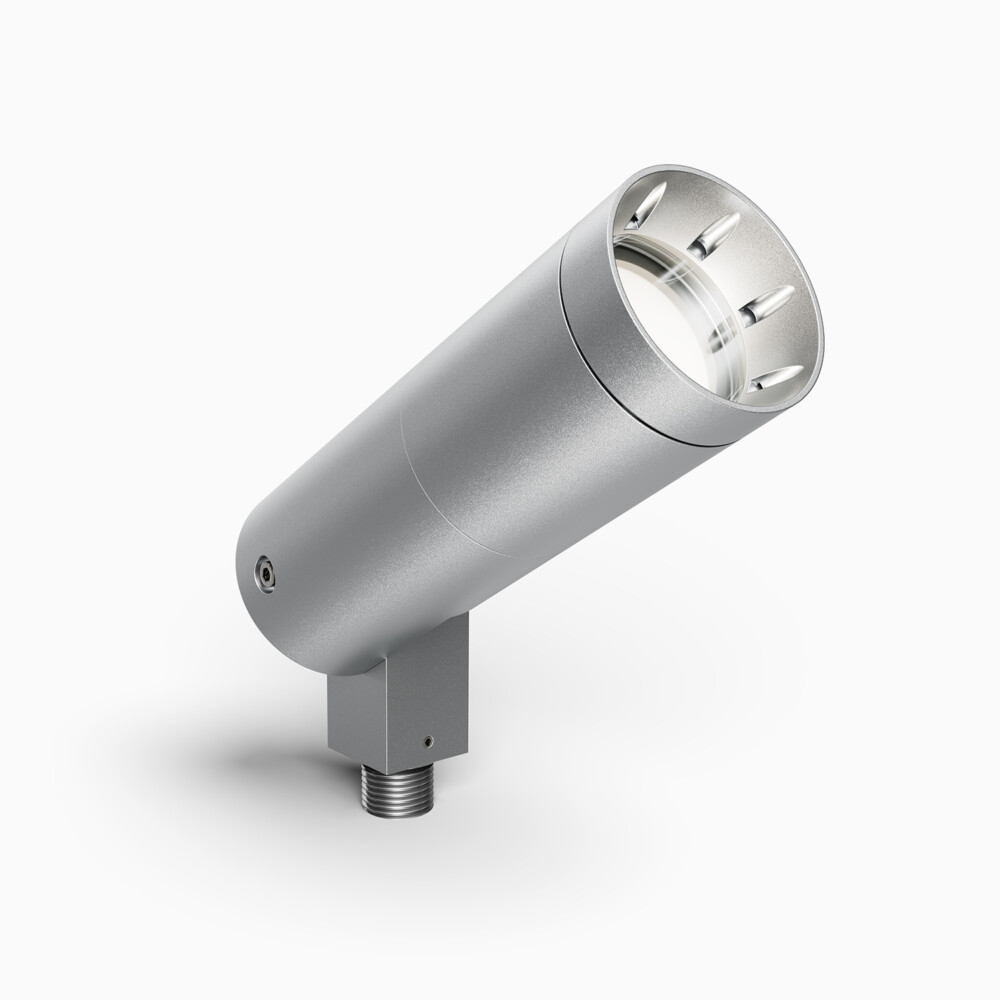

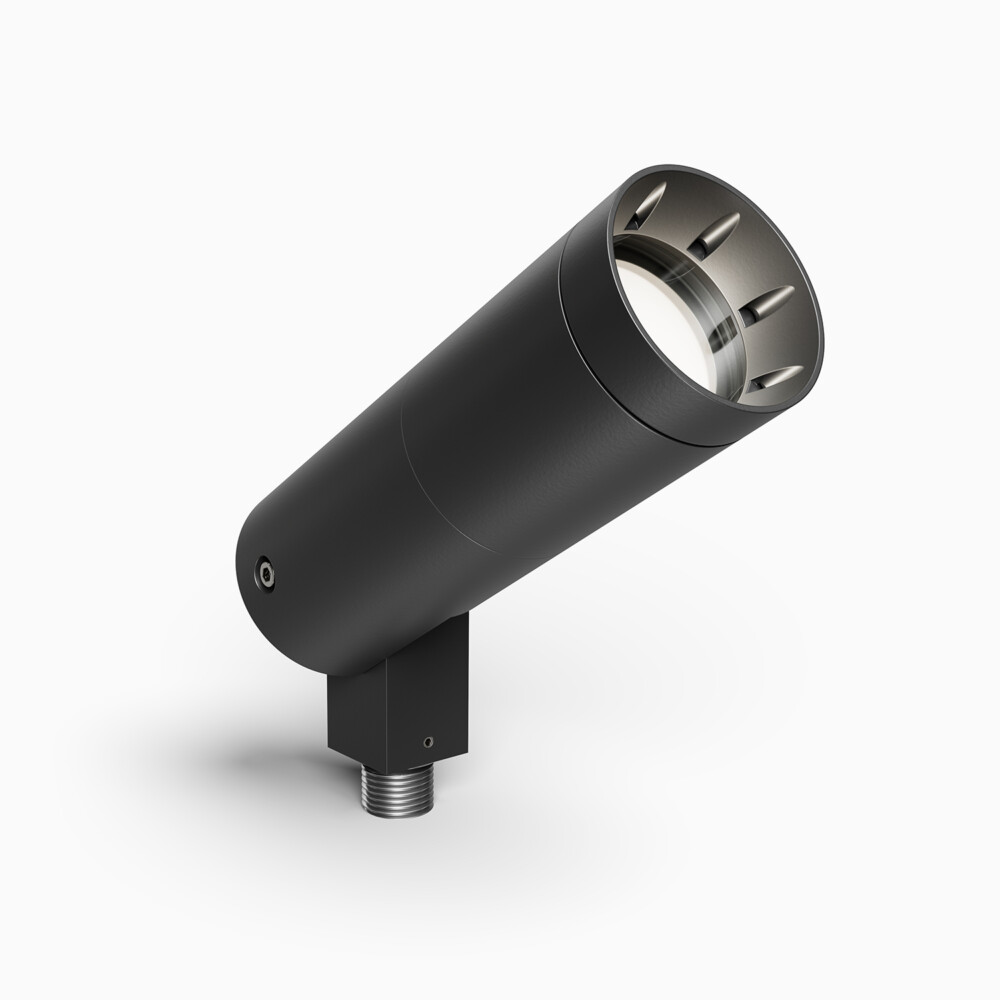

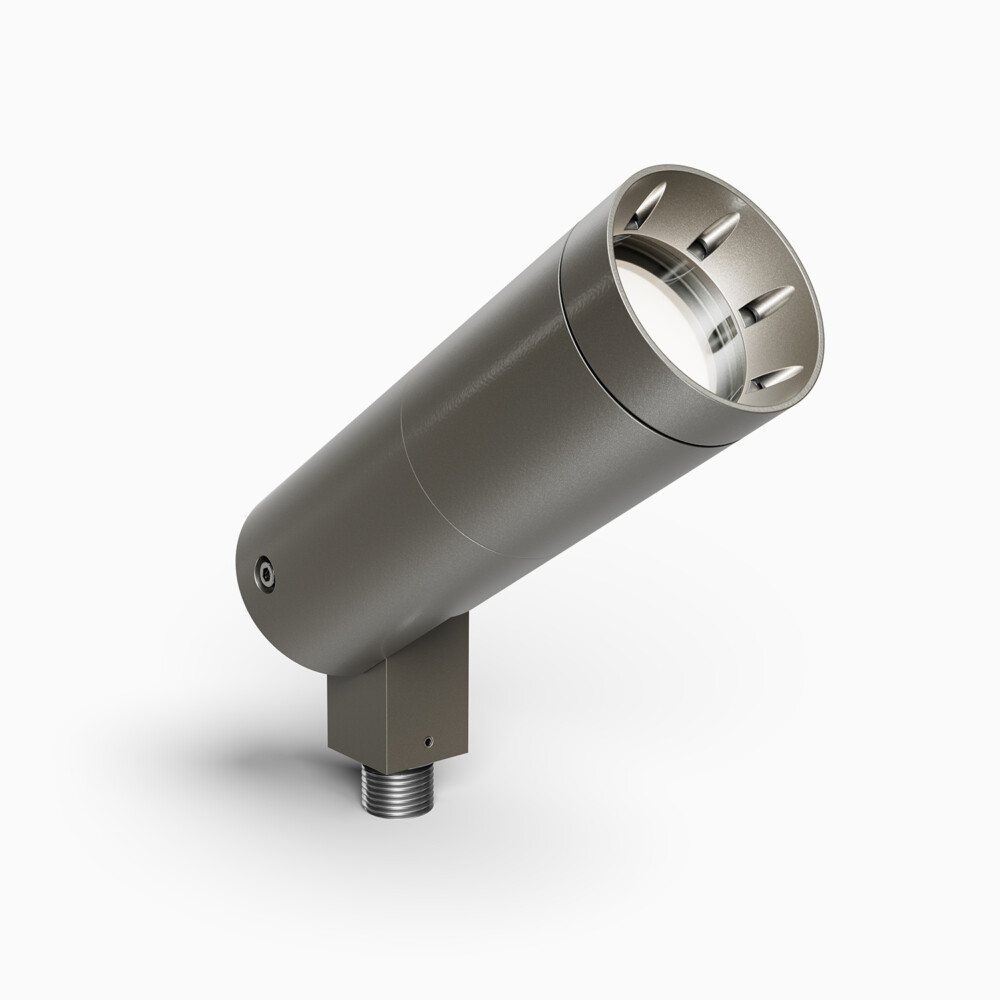

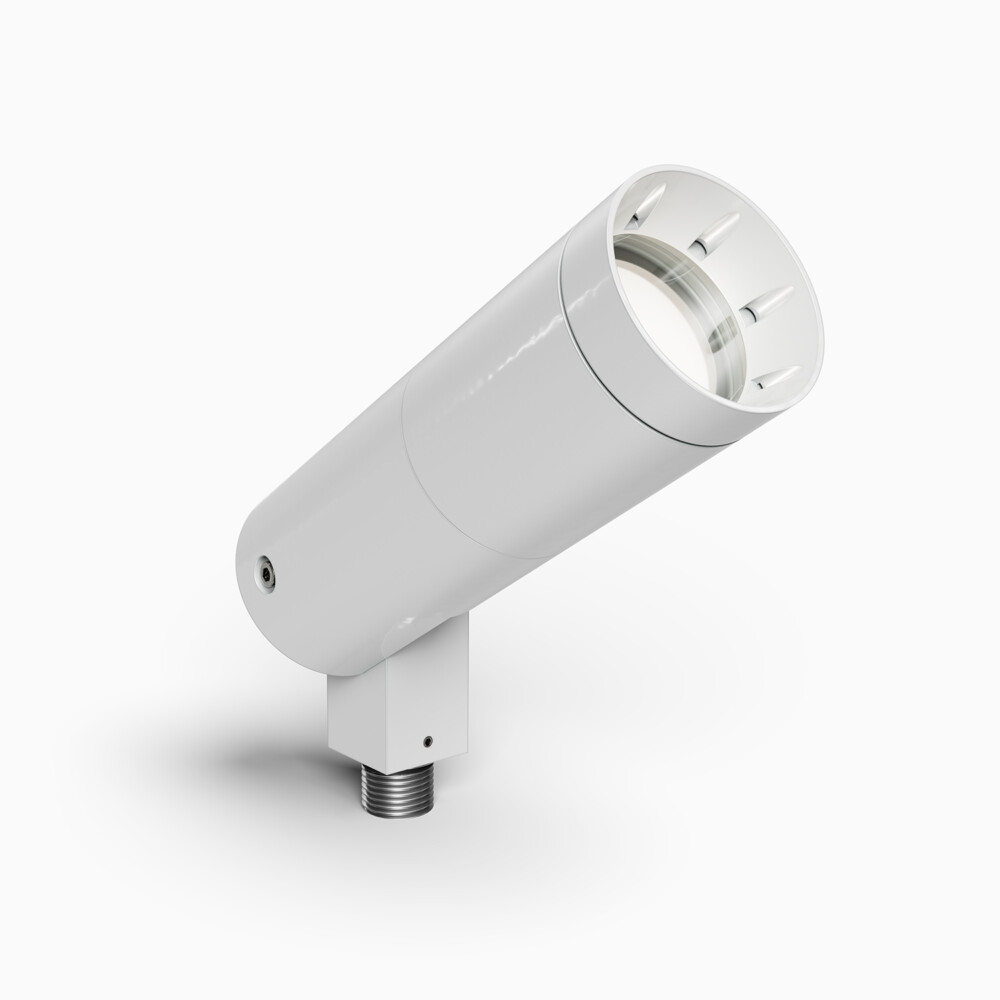

Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
5, 7 or 10W HK LED delivers 500 to 900 lumens.
Mounting
Mounts using a ½"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 for details)

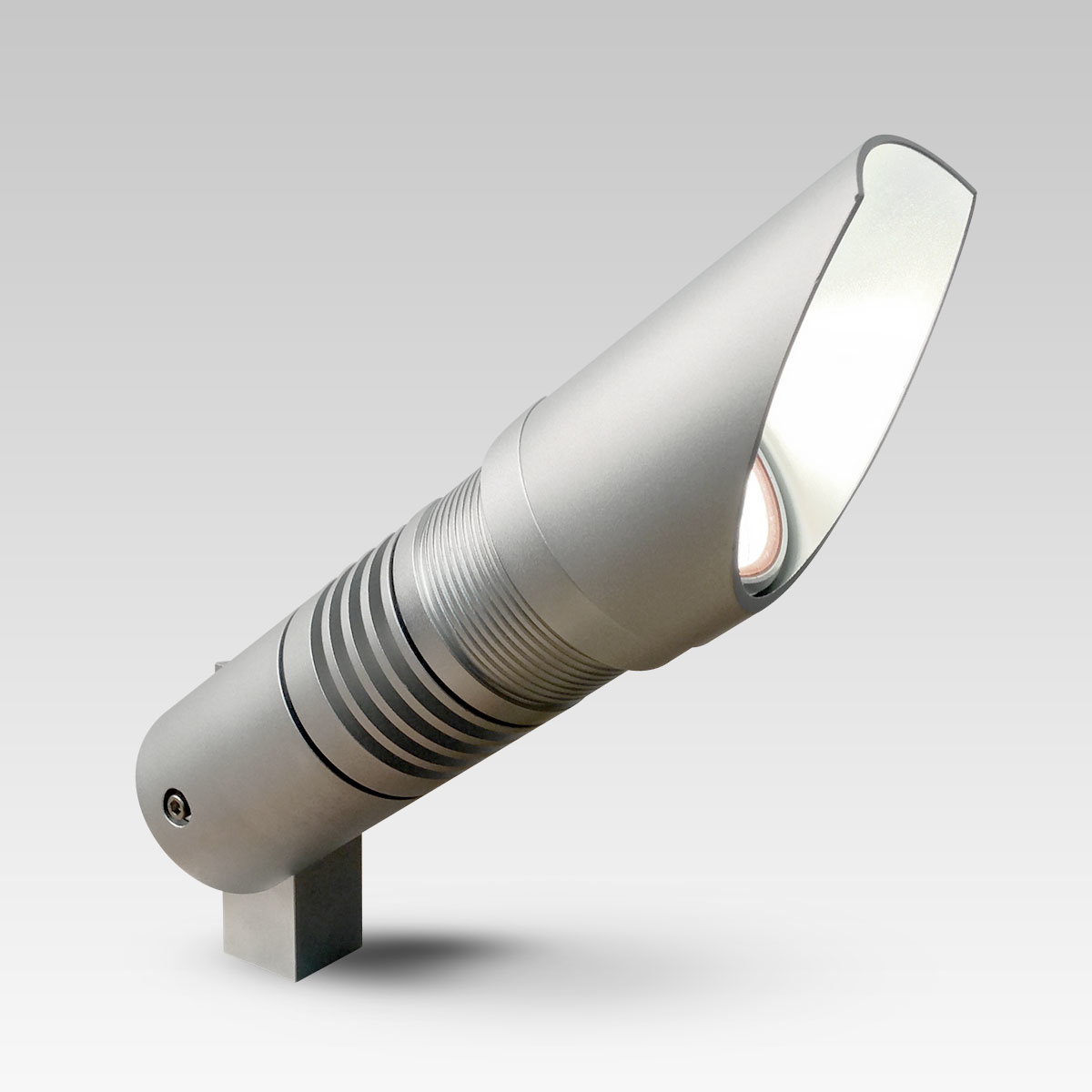

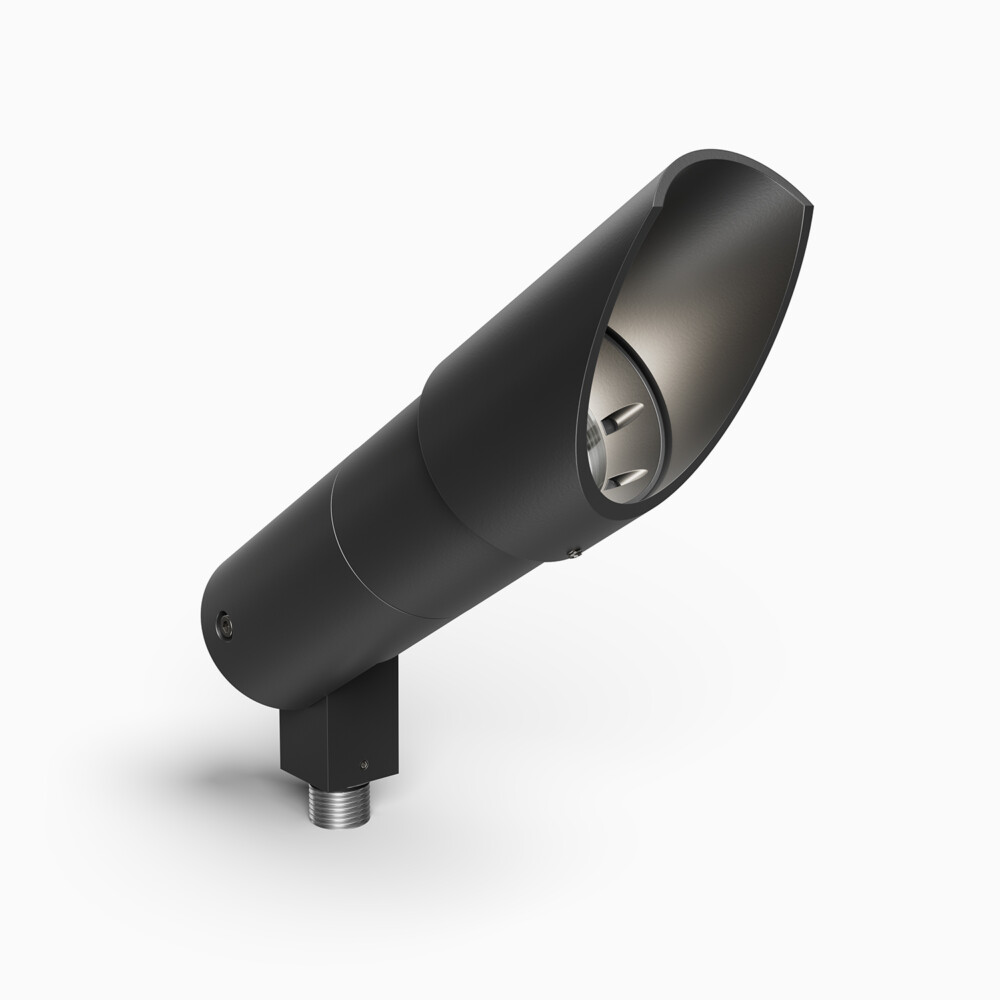

Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 of Spec Sheet for details)
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGB options available. Consult factory for specialty LED specification details.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Dimming
MLV or ELV Phase Control dimming.
