ZFL08

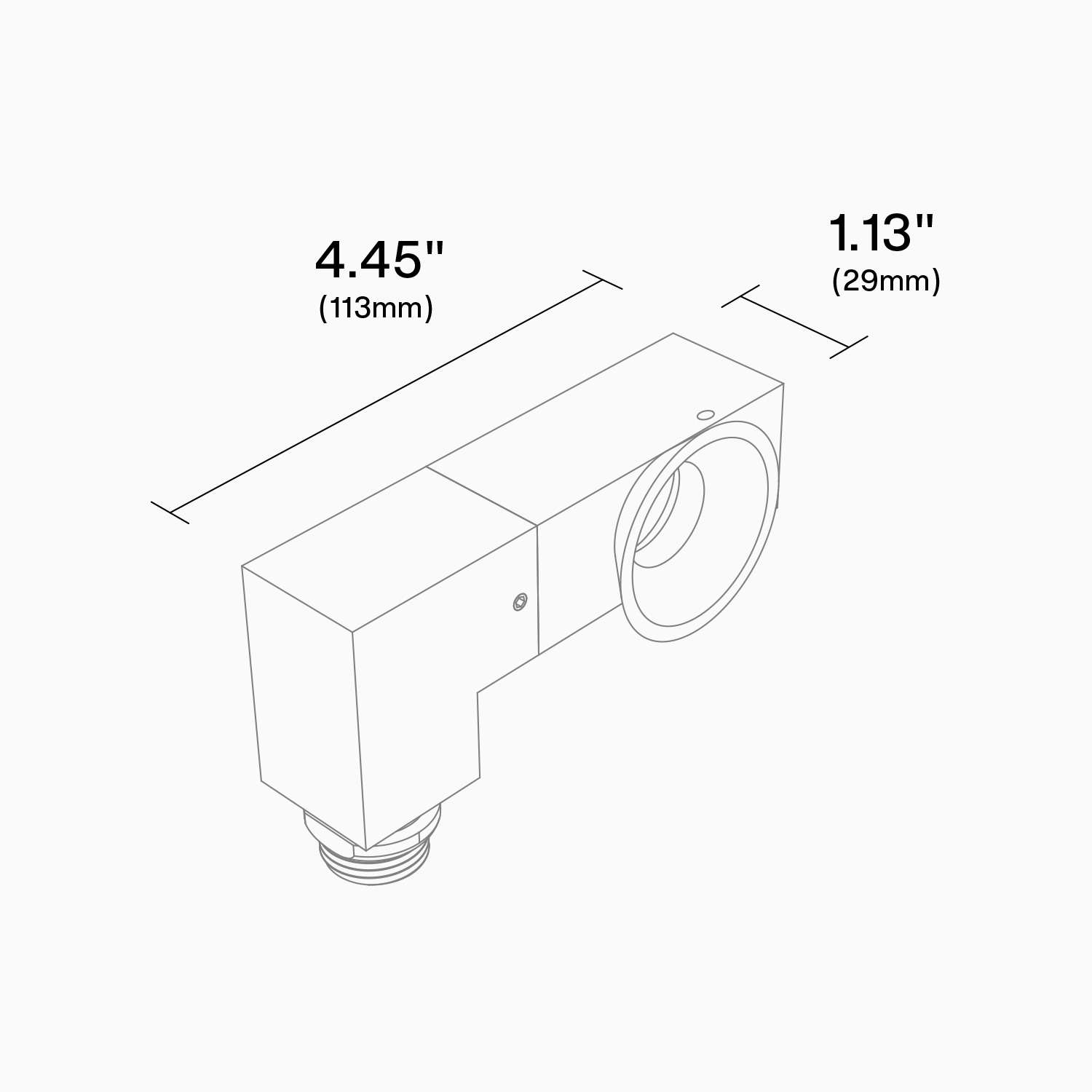

FLOOD & WALL WASH | ZFL08 Series | 1.13"
3W ( 100lm ) | 12V | HK LED, Amber

(Includes former ZXLF-L-08 model)

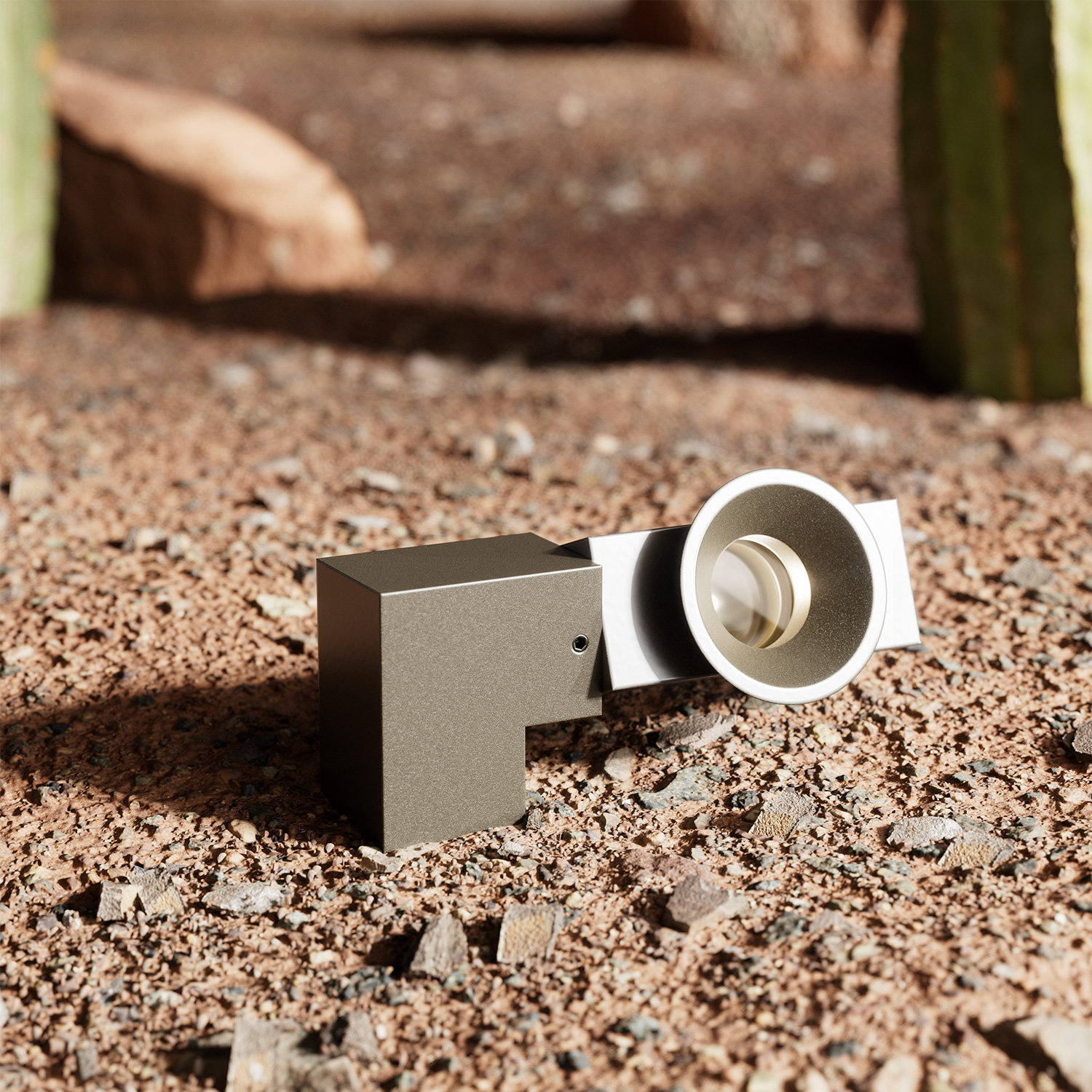

Discrete, low glare 12V LED flood light designed to illuminate smaller plants and arid landscape environments, where soft light is preferred.

FEATURES:

3W integrated HK LED delivering 100 lumens of soft, pleasing light. 2700–4000K CCT.
Wet Location Listed, IP67 Standard.
Machined from solid 6061-T6 aluminum, then anodized and powder coated for durability and corrosion resistance in marine environments. Also available in solid brass or stainless steel.
360º vertical and 360º horizontal adjustment via unique swivel stem design.
Integrated, innovative Glare Shield, and Solite Lens minimizes glare and ensures soft, even distribution of light.
Ground, surface, and canopy mounting options.
Every fixture tested end of line for water tightness and light quality.
Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Explore wildlife lighting criteria and application guidance.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.

spec sheets

photometry

Specifications

Materials

Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware. Available in 304 or 316 stainless steel or 360 brass upon request.

Voltage

12V AC/DC. Requires remote step down transformer.

Optics

Wide Flood Optic included with installed Solite Lens to deliver soft light and minimize glare.

Glare Shield

Integrated Glare Shield included.

Wattage

3W HK LED delivers 100 lumens.

Mounting

Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 of the spec sheet for details)

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine-grade, natatorium-grade finish. Stainless steel and brass models are provided with brushed surface.

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Standard CCT options are 2700K, 3000K, and 4000K. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Consult factory for specialty LED details.
