5–7W ( 365–560lm ) | 12V | HK LED, Amber
ZXA11 Adapt
5–7W ( 365–560lm ) | 12V | HK LED, Amber

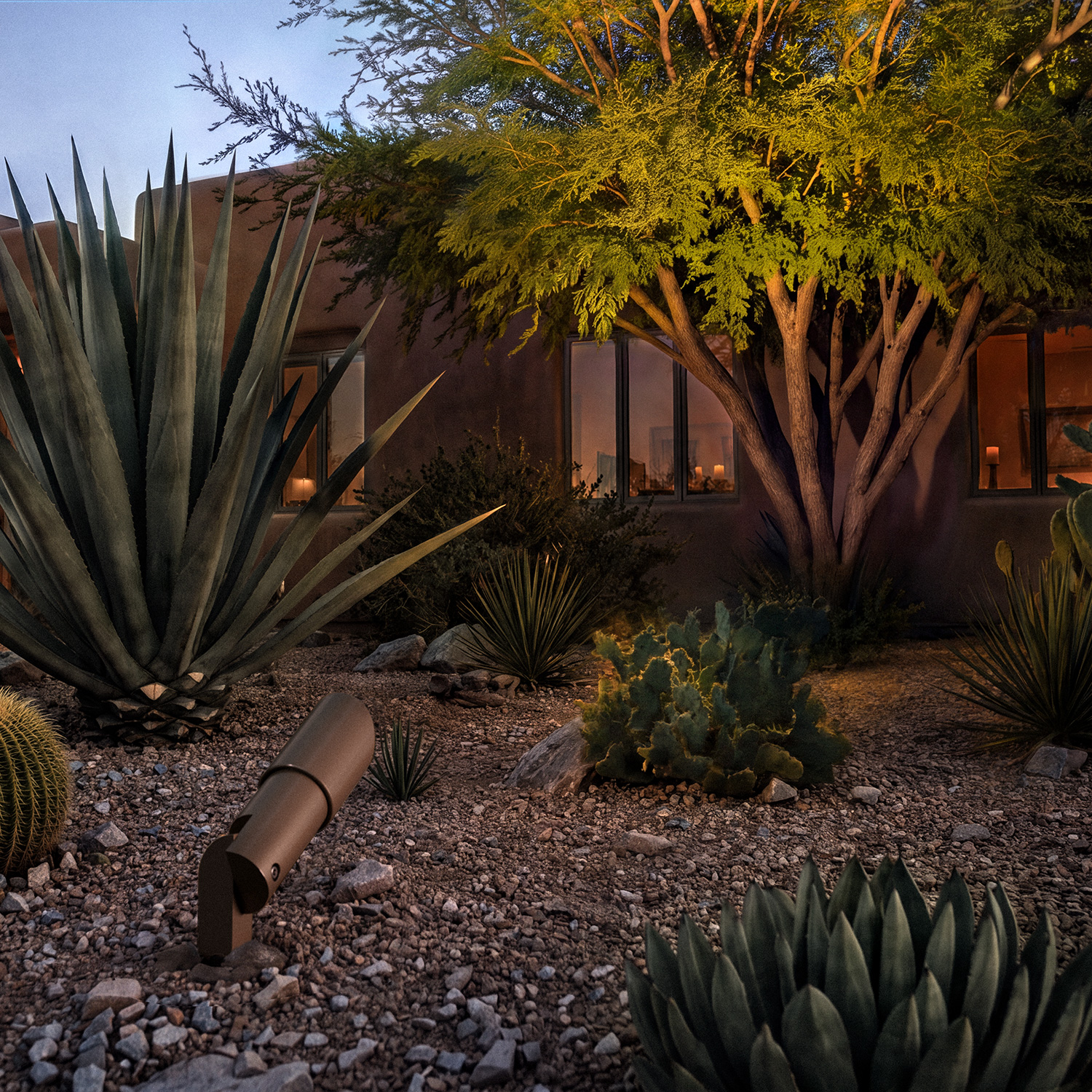

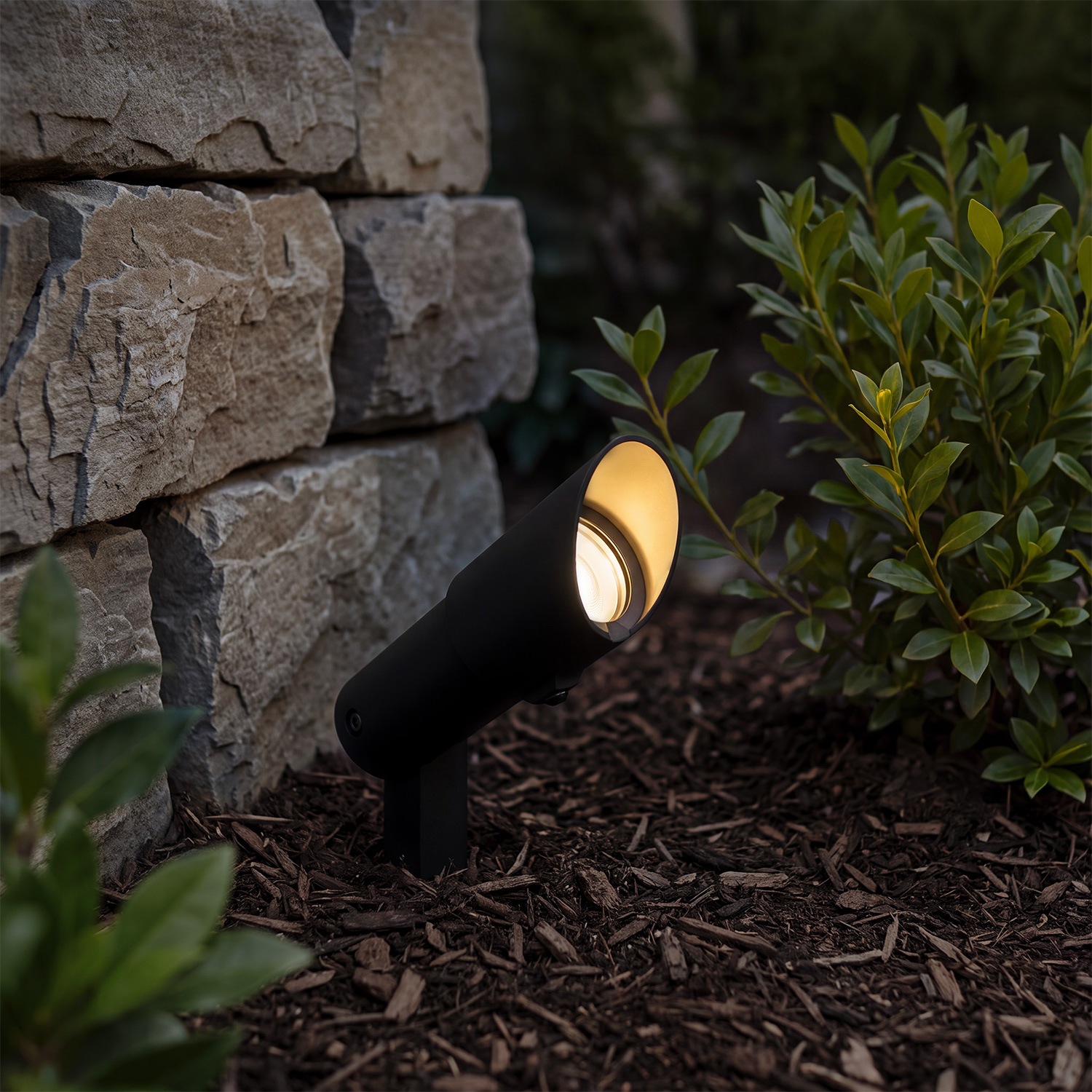

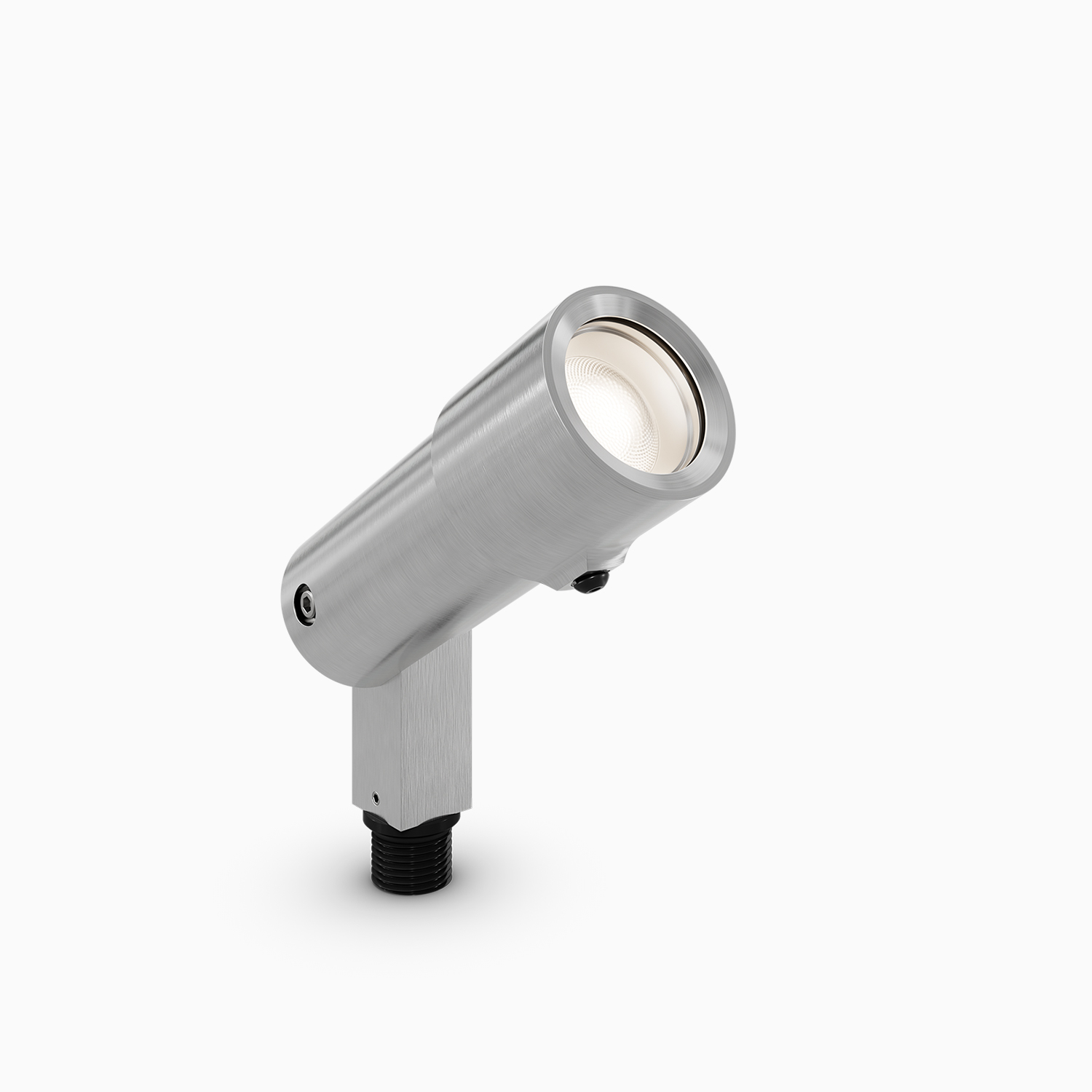

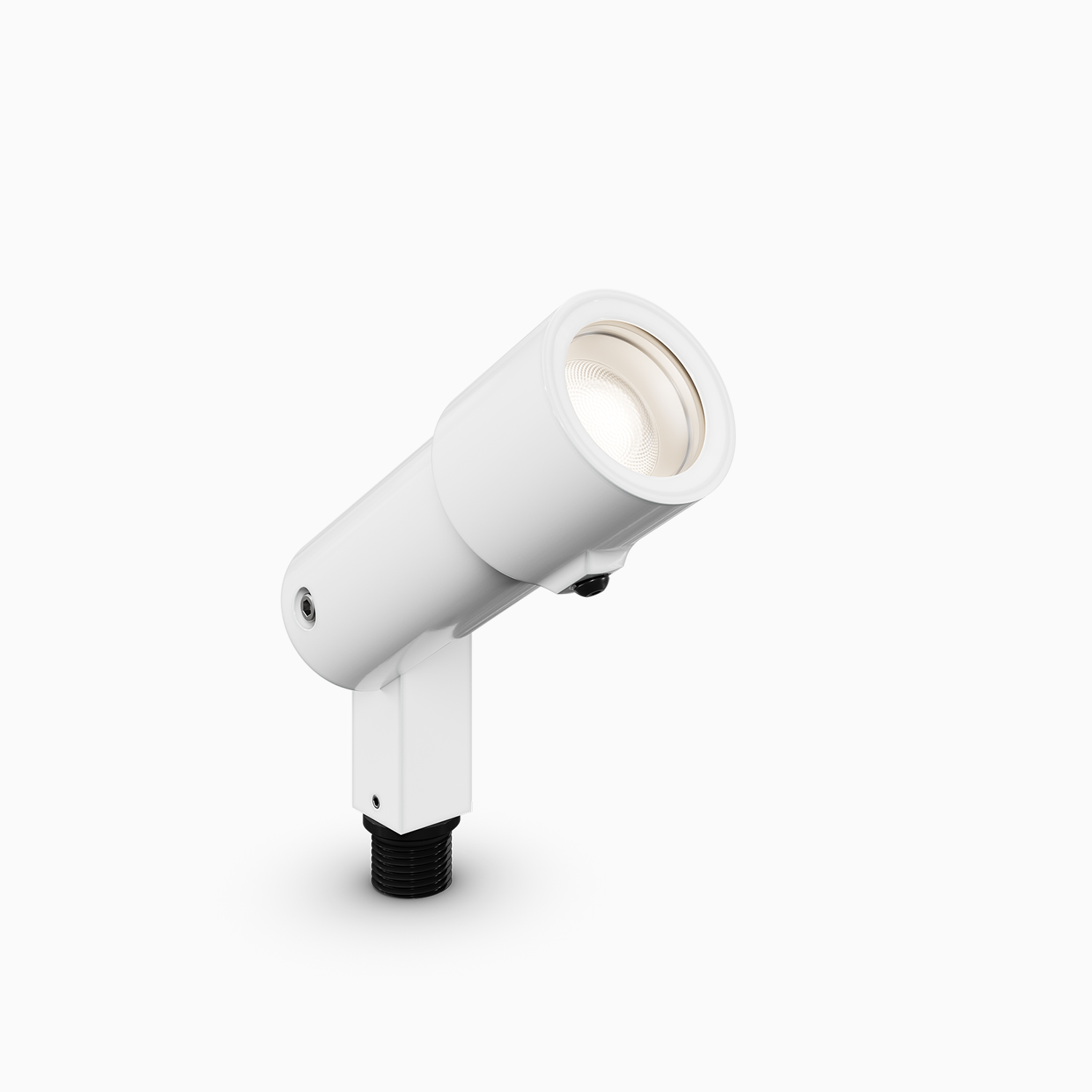

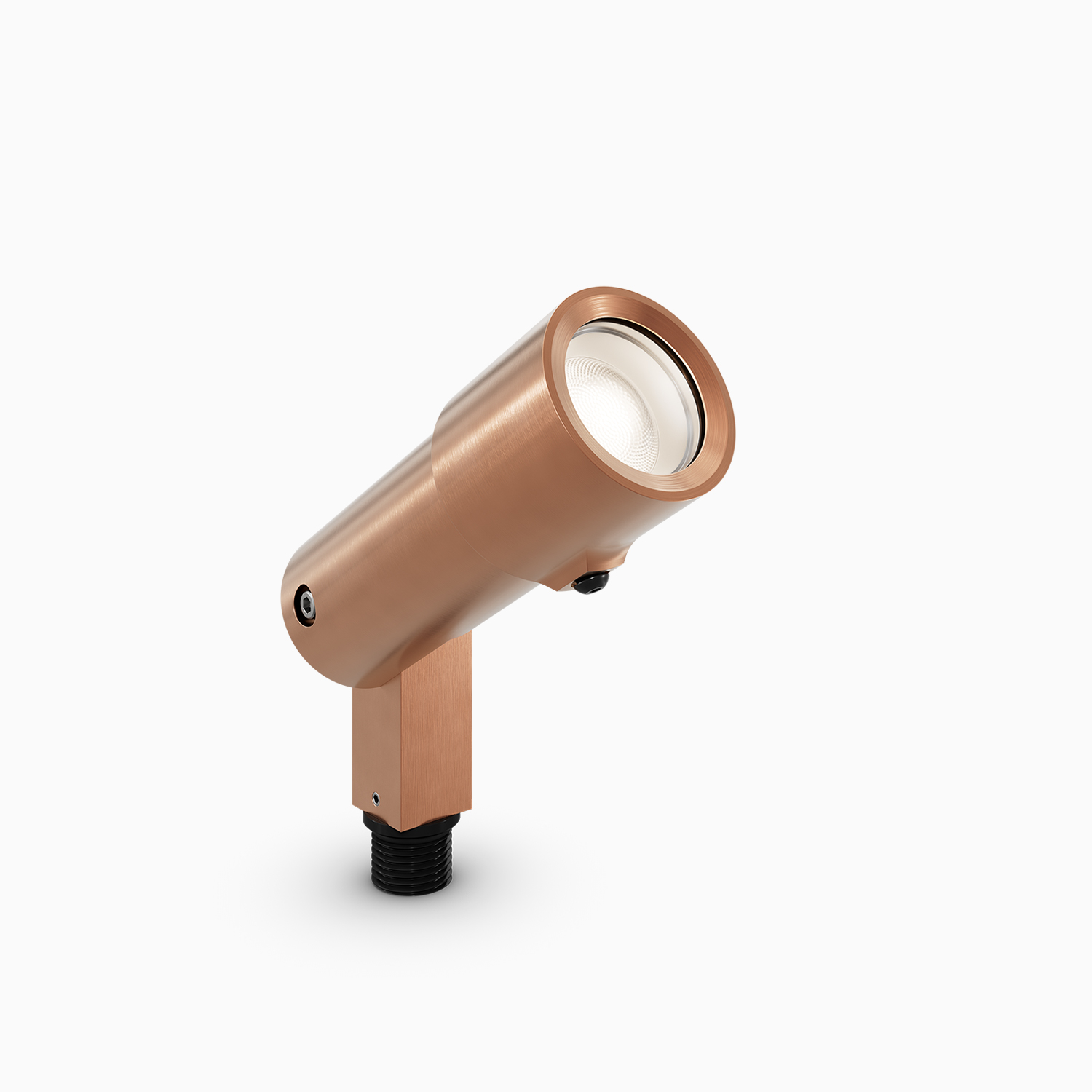

A compact, directional low voltage (12V) LED Accent Light featuring HK Adapt Optic technology for continuously adjustable beam angles from 14° to 63°. Most appropriate for medium to tall trees, architectural columns, and residential façades from 10 to 50 feet.
FEATURES:
- Adapt Optic enables easy beam angle adjustment from 14º to 63º by simply sliding the hood, then locking it securely in place with a set screw for precise, repeatable aiming.
- 5W, 7W integrated HK LED delivers 365–560 lumens. 2700K, 3000K, 3500K, and 4000K CCT options for residential and commercial lighting applications.
- Wet Location Listed, IP67 Standard.
- Machined from solid 6061-T6 aluminum, then anodized and powder coated for durability and corrosion resistance in marine environments.
- 240º vertical and 360º horizontal adjustment via locking swivel stem design.

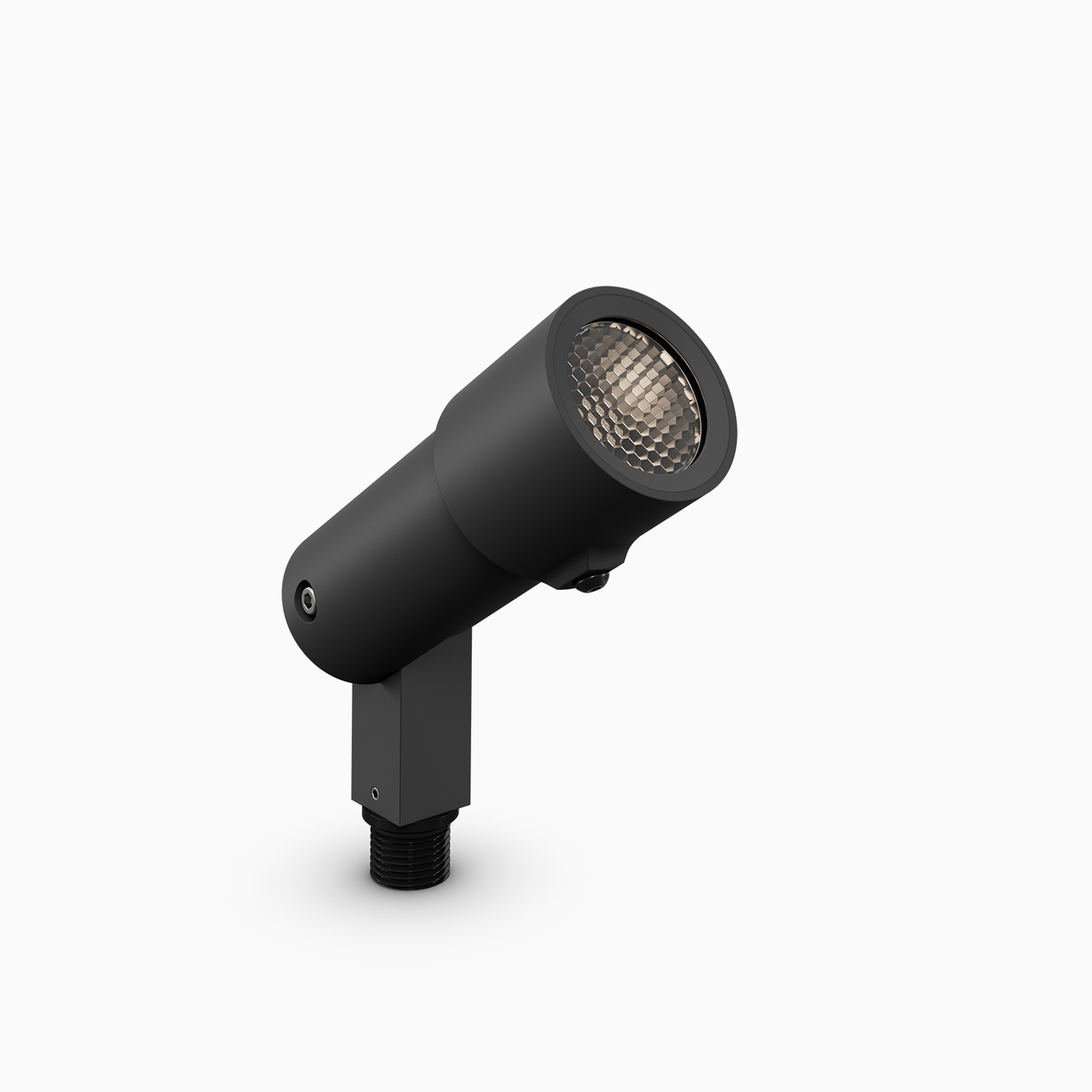

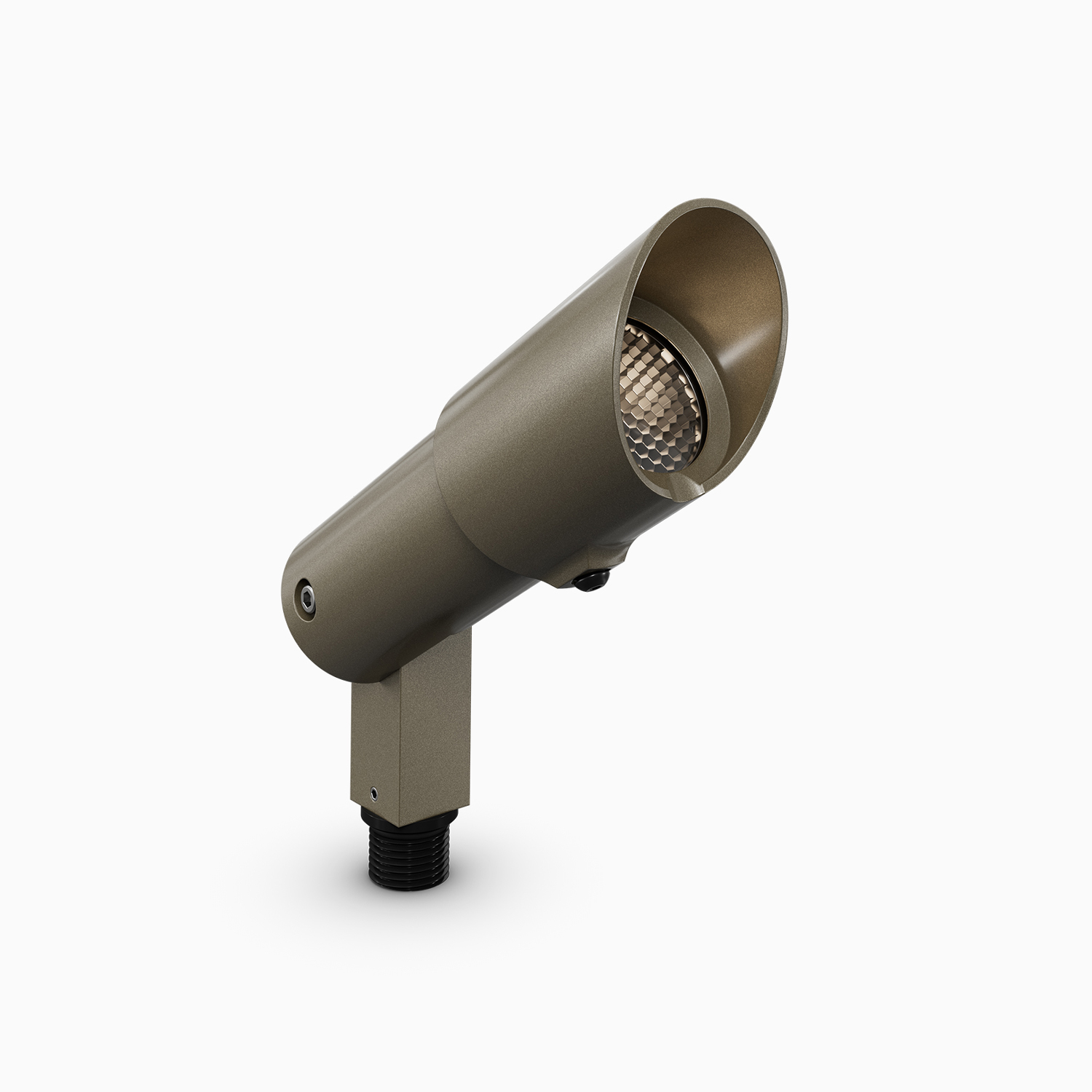

- Two weeping hood styles available, integrated Angled Glare Shield or Flush Lens. With less than 1% field light, the Adapt Optic provides superior glare control in both hood options. (Now with a hex louver option.)
- Every fixture tested end of line for water tightness and light quality.
- Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Explore wildlife lighting criteria and application guidance.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials

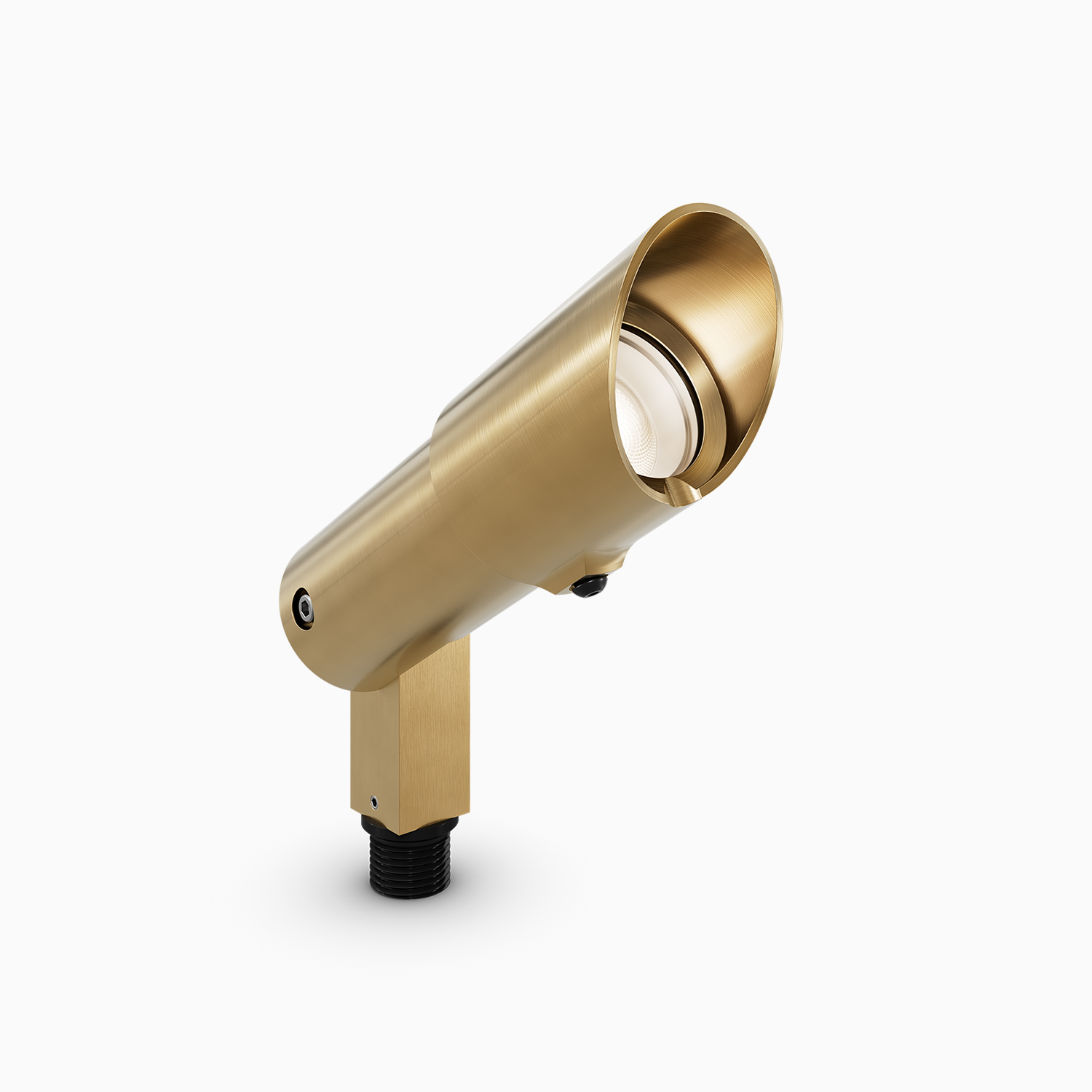

Machined from solid billet 6061-T6 corrosion-resistant aluminum with 316 stainless steel hardware. Available in 316 stainless steel or 360 brass upon request.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics

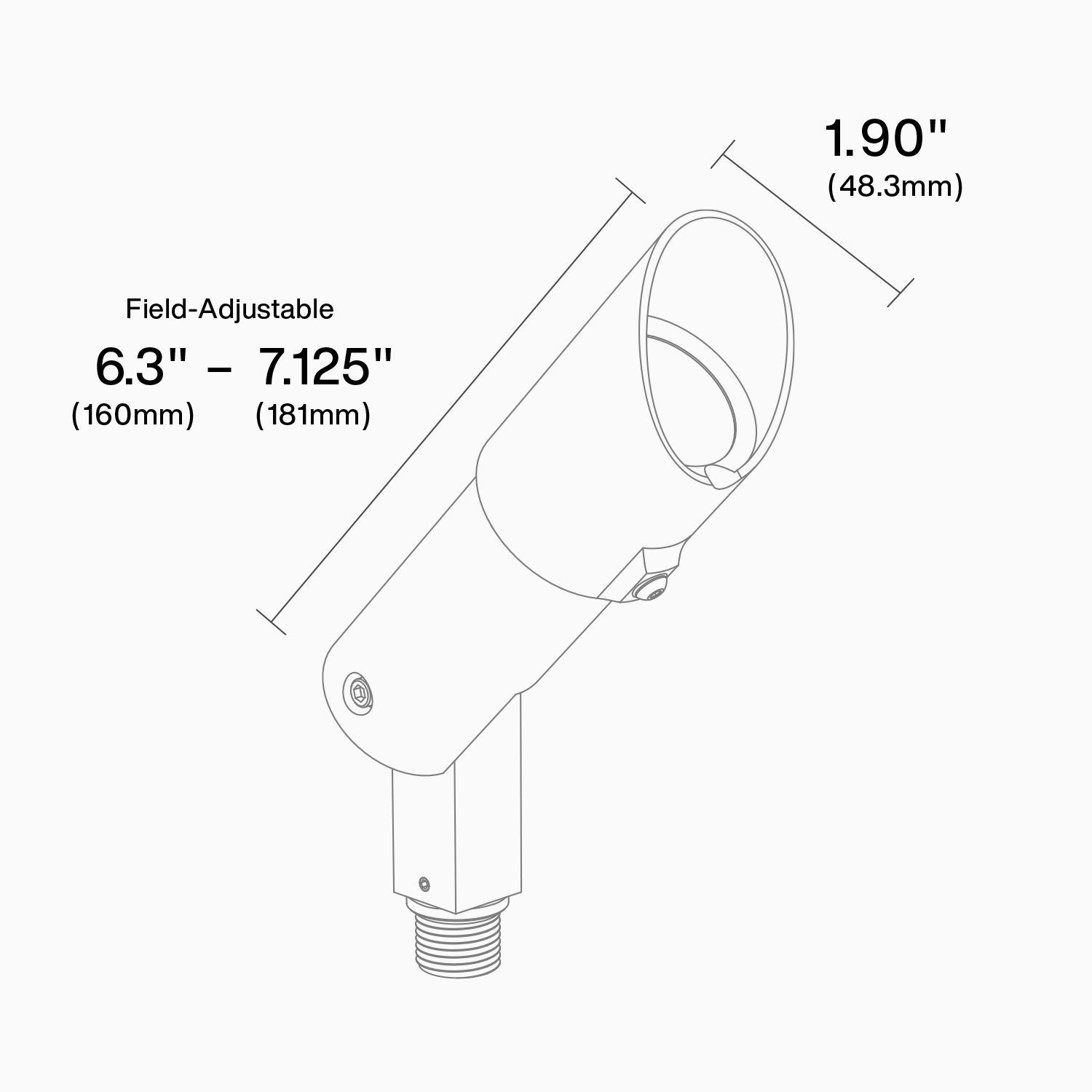

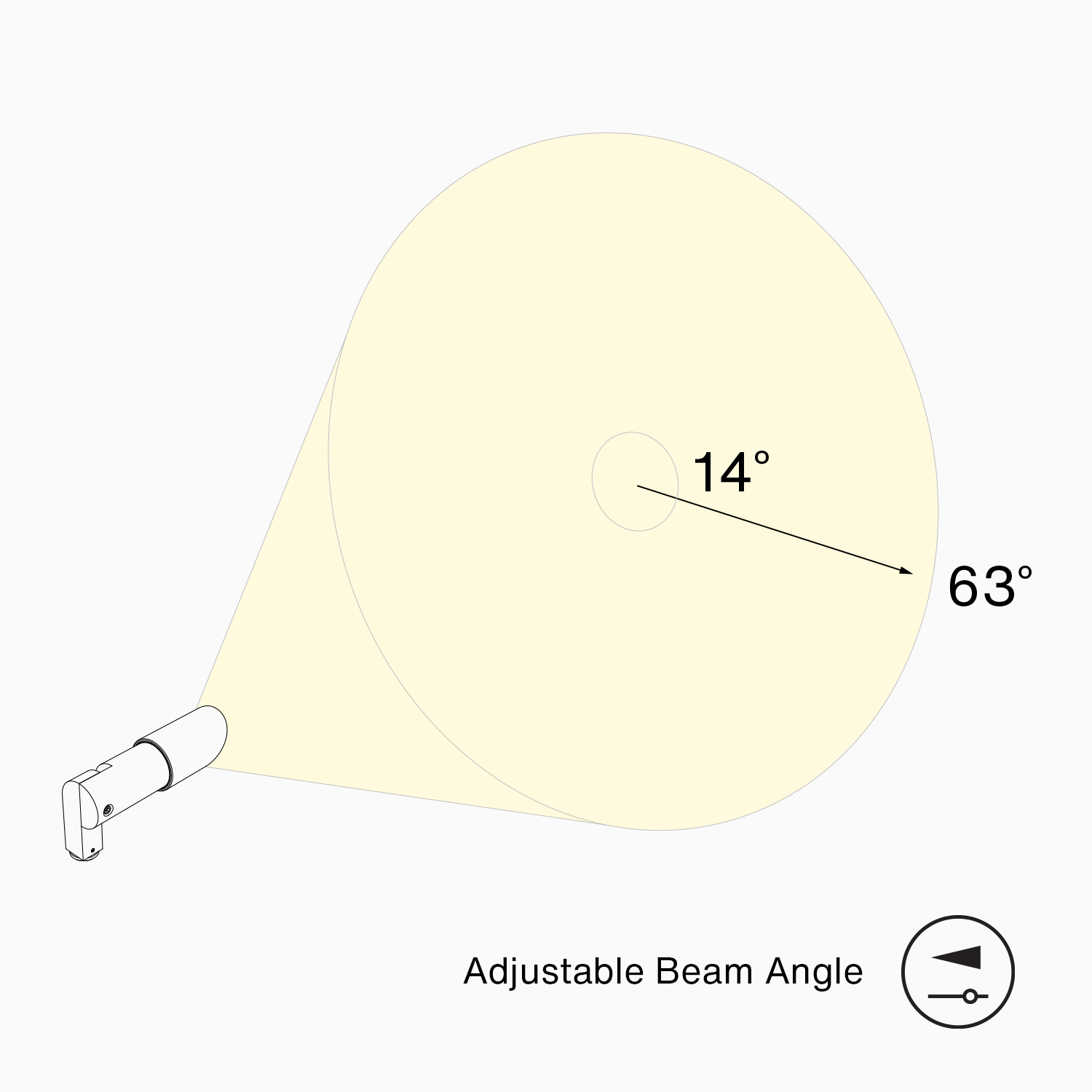

The HK Adapt Optic enables continuous beam angle adjustment from a very narrow (14°) spotlight to a wide (63°) flood. Once positioned, the hood locking screw securely maintains the selected beam angle. Preserves less than 1% field light levels for exceptional glare control, even with the sleek Flush Lens Hood.
Finish

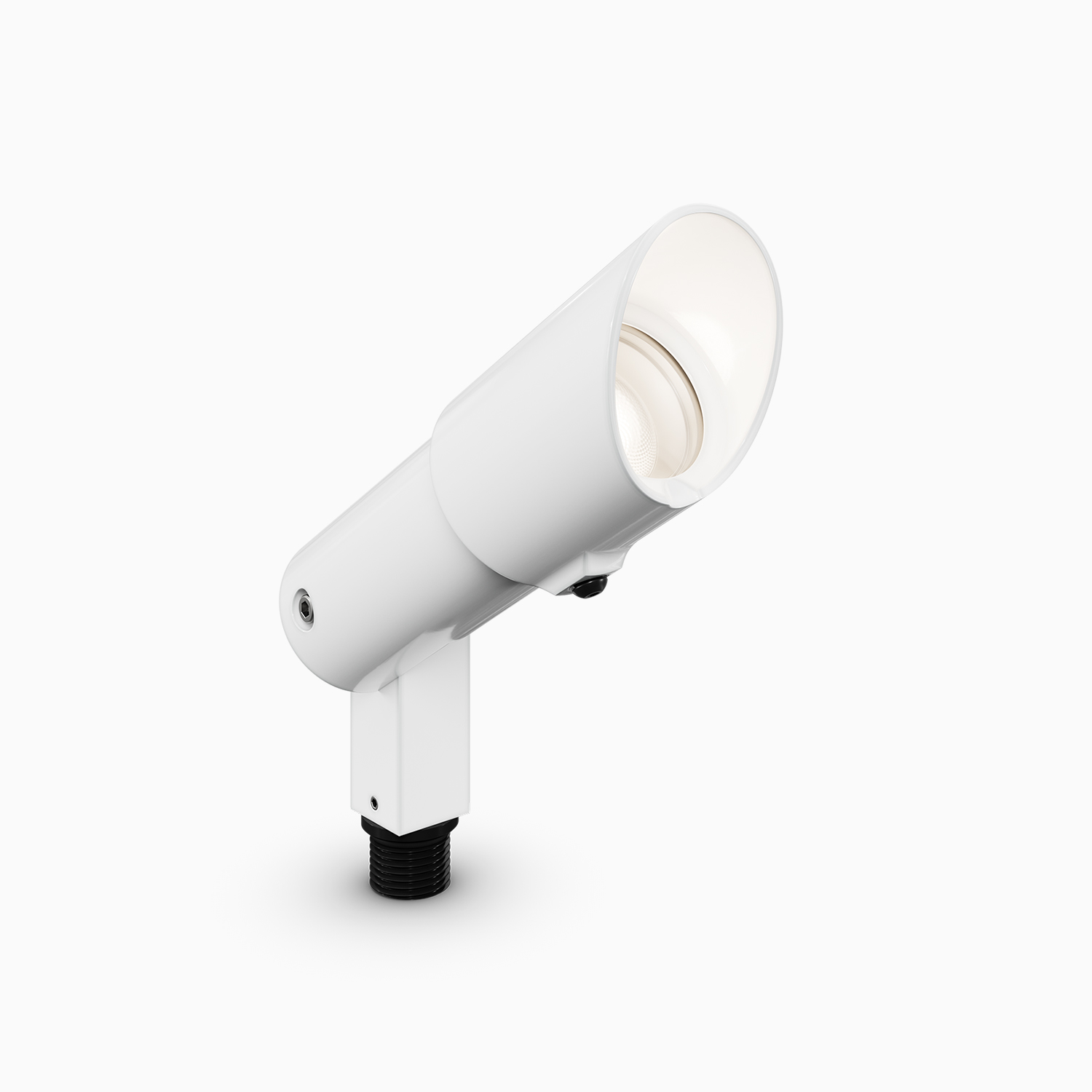

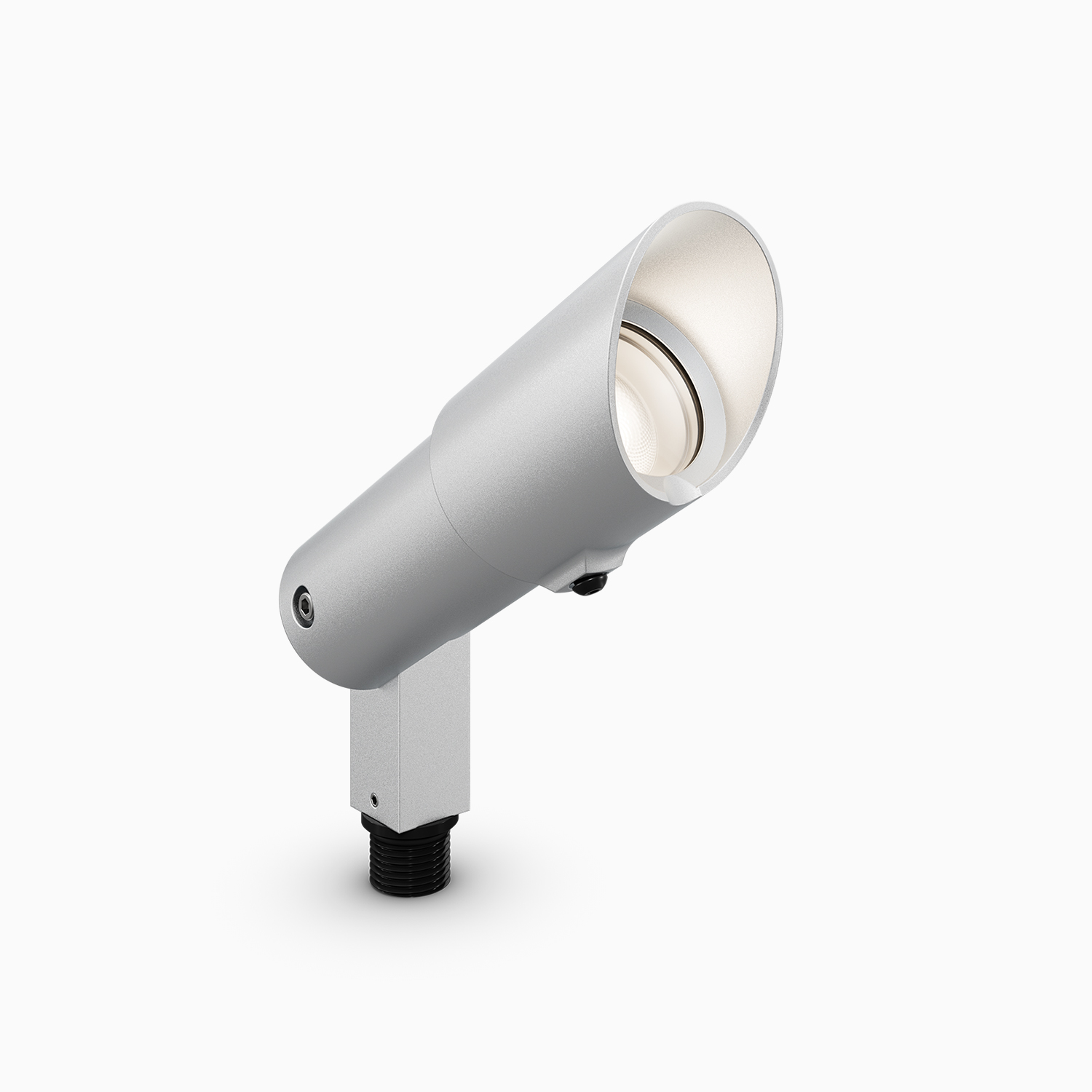

Aluminum materials are first anodized and then powder coated to create a robust marine-grade, natatorium-grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
5 or 7W HK LED delivers up to 560 lumens.
Mounting
Mounts using ½"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 of Spec Sheet for details)
Hood Styles

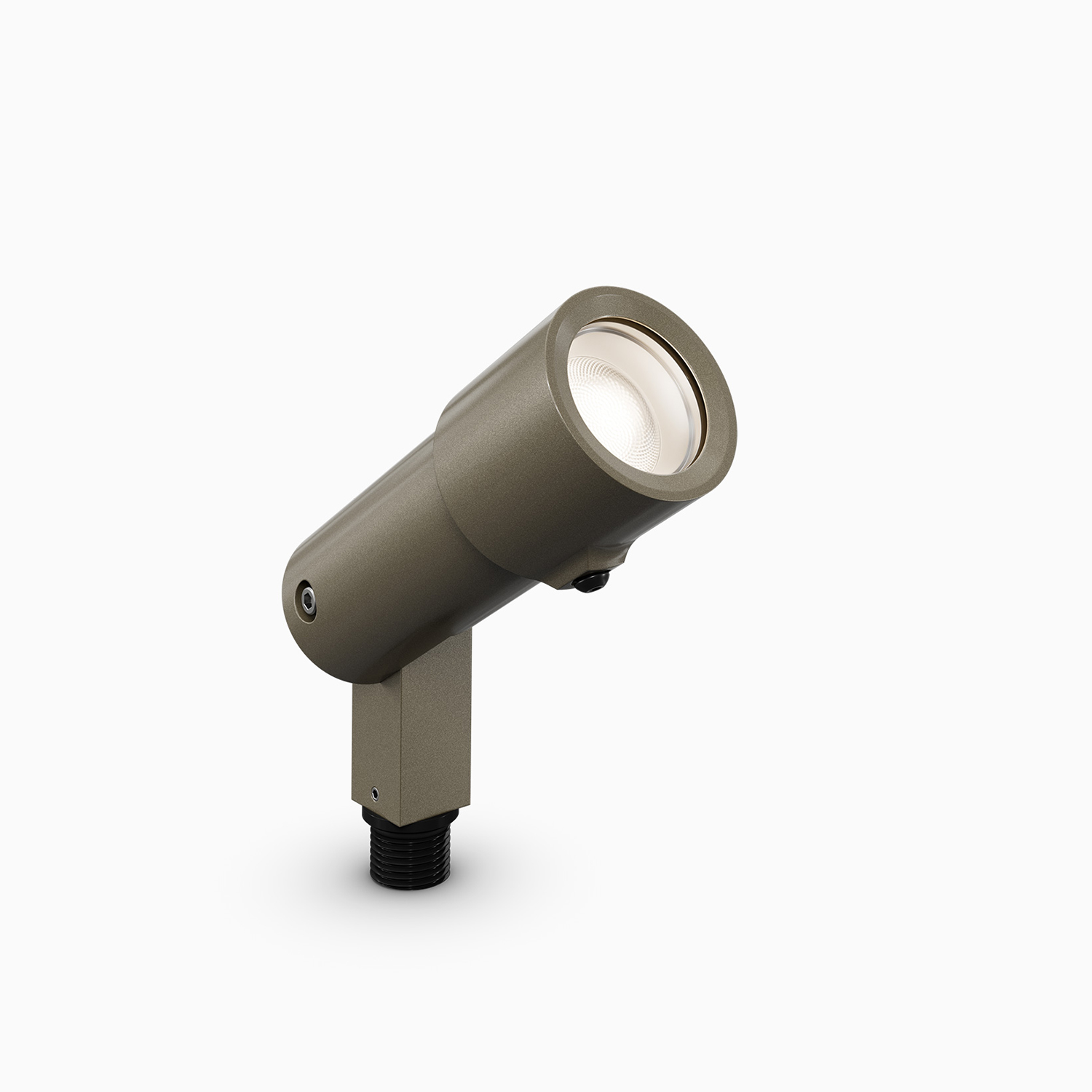

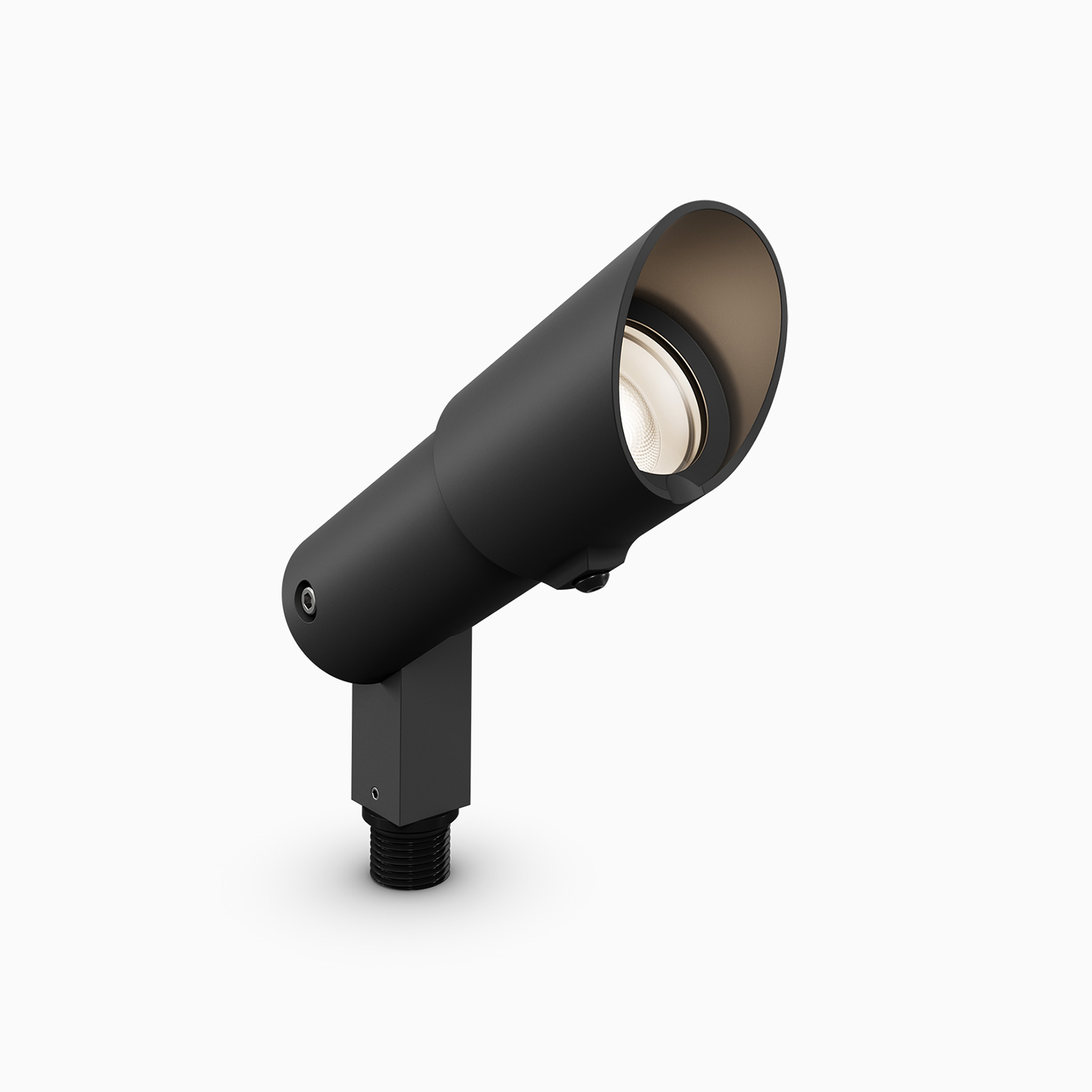

Two weeping hood styles are available. The G Style includes an integrated Angled Glare Shield, while the F Style has a Flush Lens, without a glare shield. Both options provide exceptional glare control. (See page 4 of Spec Sheet for details)
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Standard CCT options are 2700K, 3000K, 3500K, and 4000K. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Consult factory for specialty LED details.
Listings
CSA Listed for Wet Location (UL1838), IP67 Standard. RoHS Compliant. Narrow-band Amber LED meets wildlife and turtle-safe lighting requirements.
Dimming
MLV or ELV Phase Control dimming.
