5–10W ( 500–950lm ) | 12V | HK LED

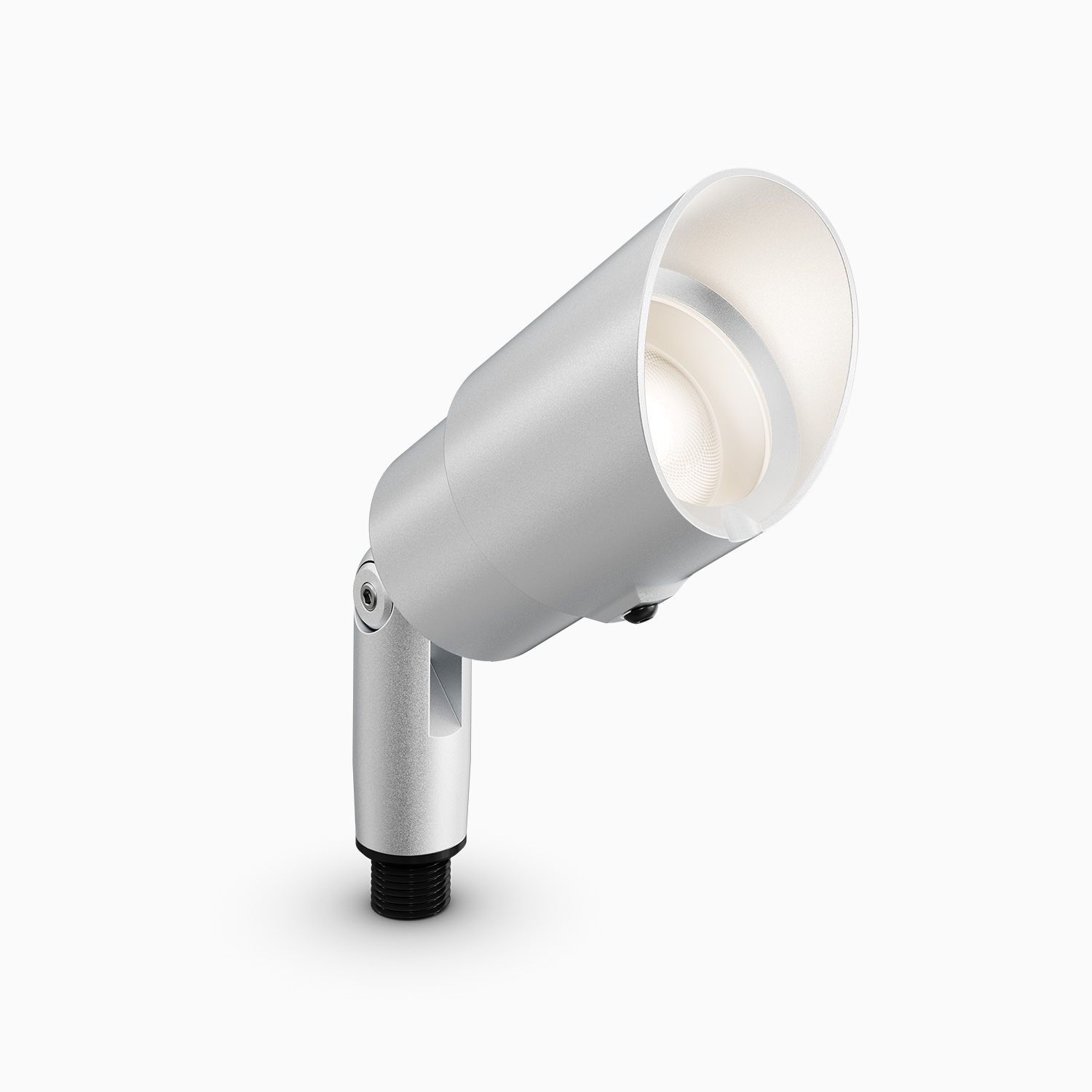

ZXA16 Adapt Center Pivot
5–10W ( 500–950lm ) | 12V | HK LED
A versatile Center Pivot, directional low voltage (12V) LED Accent Light combining 240° vertical and 360° horizontal adjustment with HK Adapt Optic technology for continuously adjustable beam angles from 14° to 70°. Most appropriate for tall trees, larger architectural features, and residential façades from 20 to 100 feet.
FEATURES:
- Adapt Optic enables easy beam angle adjustment from 14º to 70º with a quick hood
slide, locking securely in place with a set screw for precise and reliable positioning. - 5W, 7W, 10W integrated HK LED delivers 500, 775, and 950 lumens. 2200–4000K CCT.
Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. - Wet Location Listed, IP67 Standard.
- Machined from solid 6061-T6 aluminum, then anodized and powder coated for durability and corrosion resistance in marine environments. Also available in solid brass or stainless steel.
- 240º vertical and 360º horizontal adjustment via locking swivel stem design.
- Two weeping hood styles available, integrated Angled Glare Shield or Flush Lens. With less than 1% field light, the Adapt Optic provides superior glare control in both hood options.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials
Machined from solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware. Available in 316 stainless steel or 360 brass upon request.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics

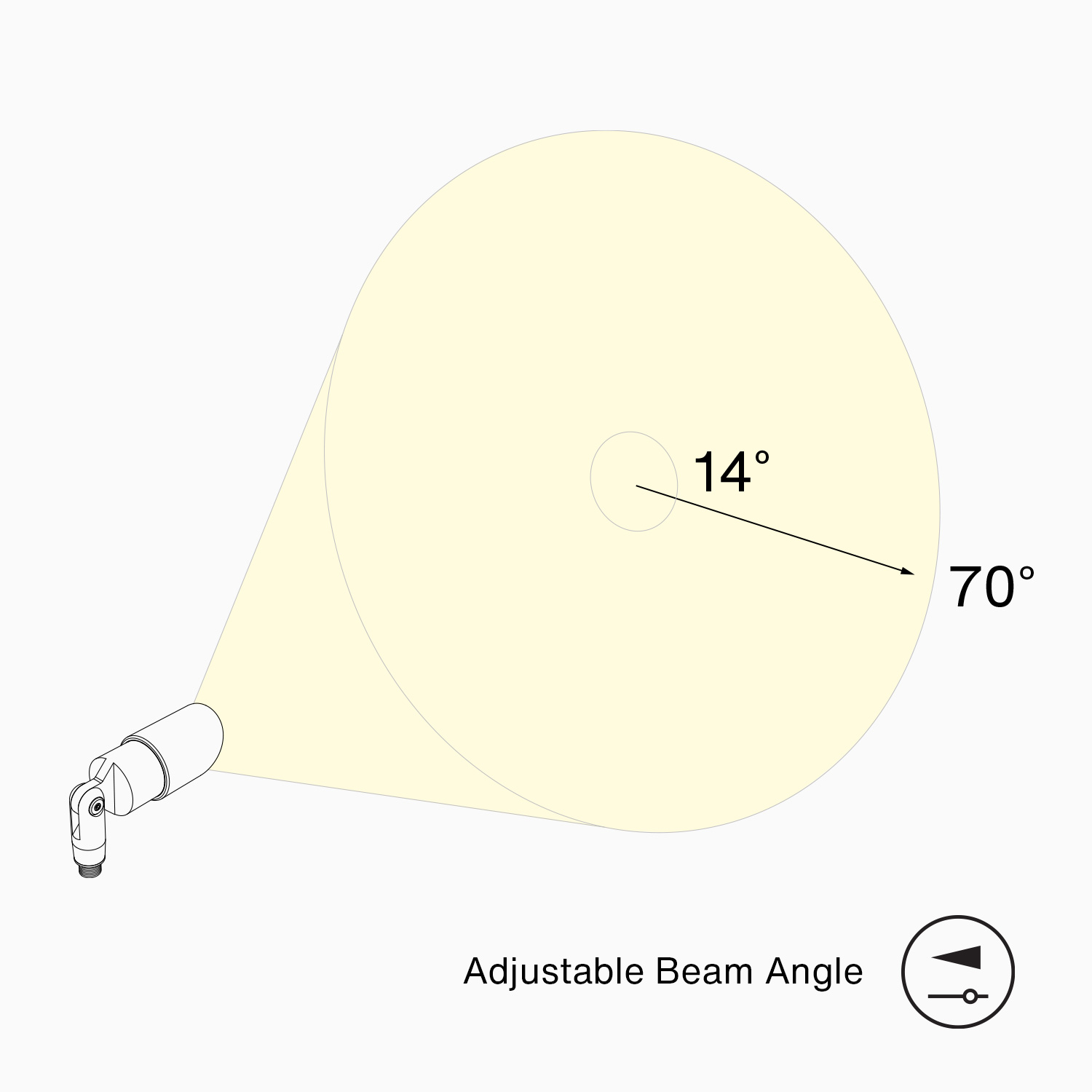

The HK Adapt Optic enables continuous beam angle adjustment from a very narrow (14°) spotlight to an extra wide (70°) flood. Once positioned, the hood locking screw securely maintains the selected beam angle. Preserves less than 1% field light levels for exceptional glare control, even with the sleek Flush Lens Hood.
Finish

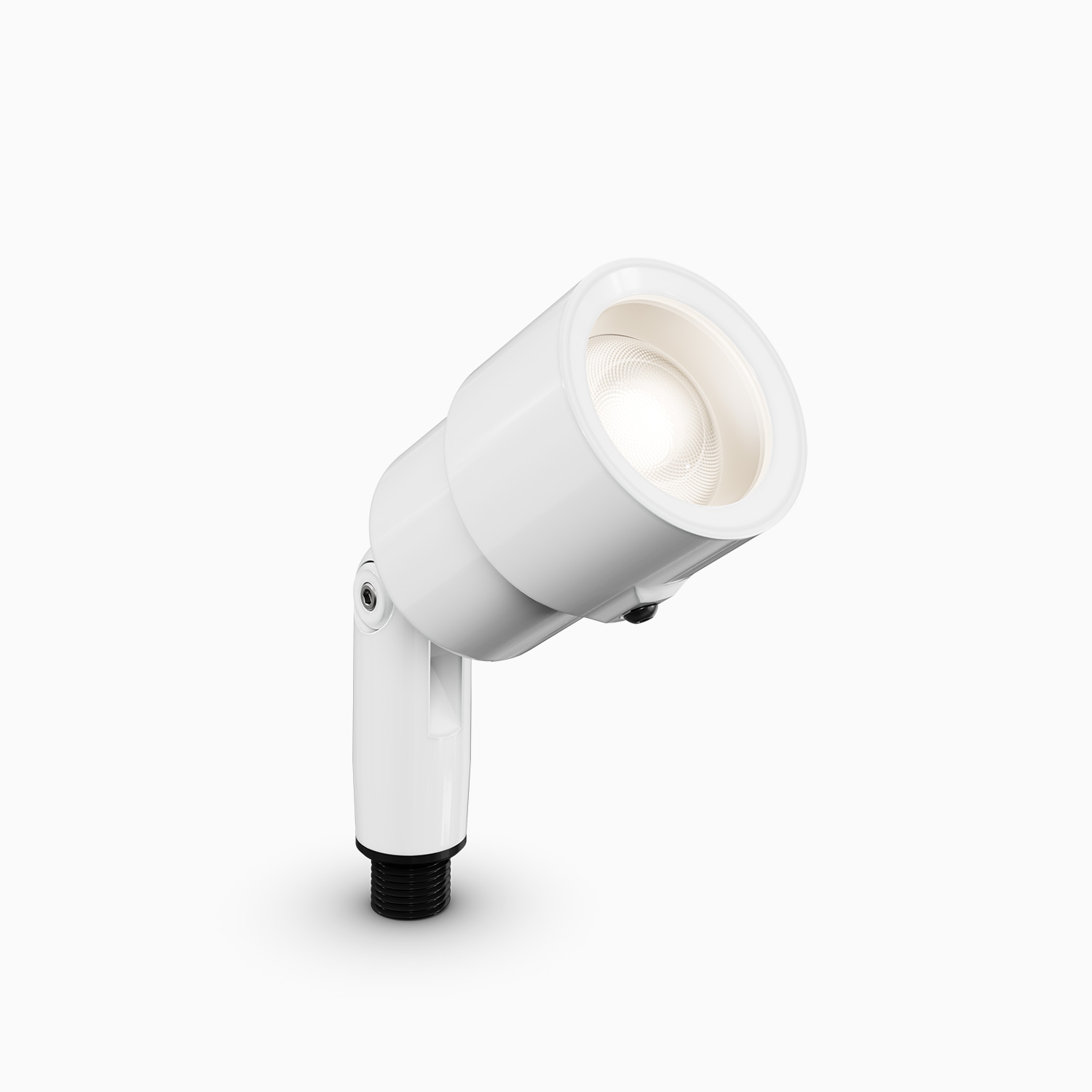

Aluminum materials are first anodized and then powder coated to create a robust marine-grade, natatorium-grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
5, 7 or 10W HK LED delivering 500–950 lumens.
Mounting
Mounts using ½"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 of Spec Sheet for details)
Hood Styles

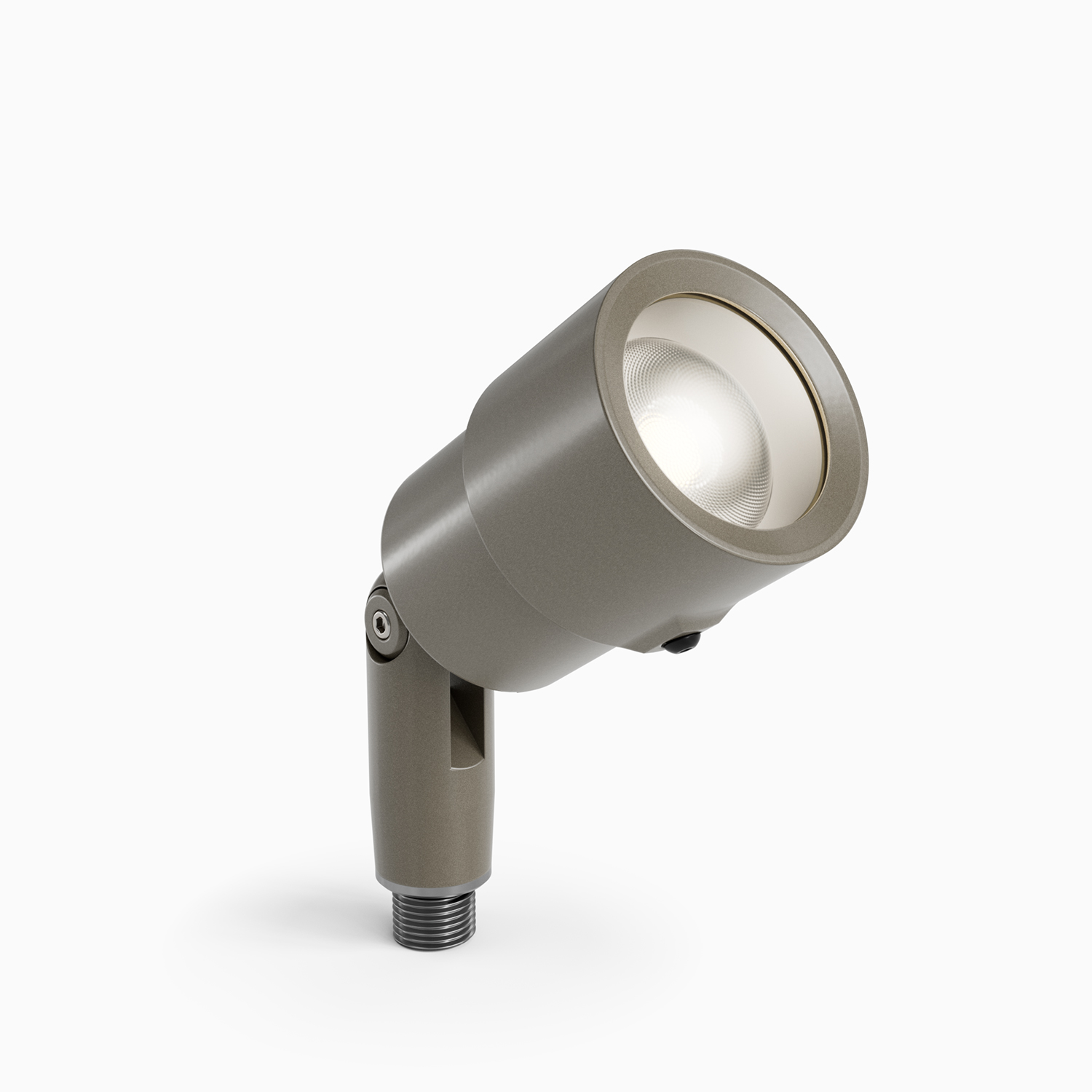

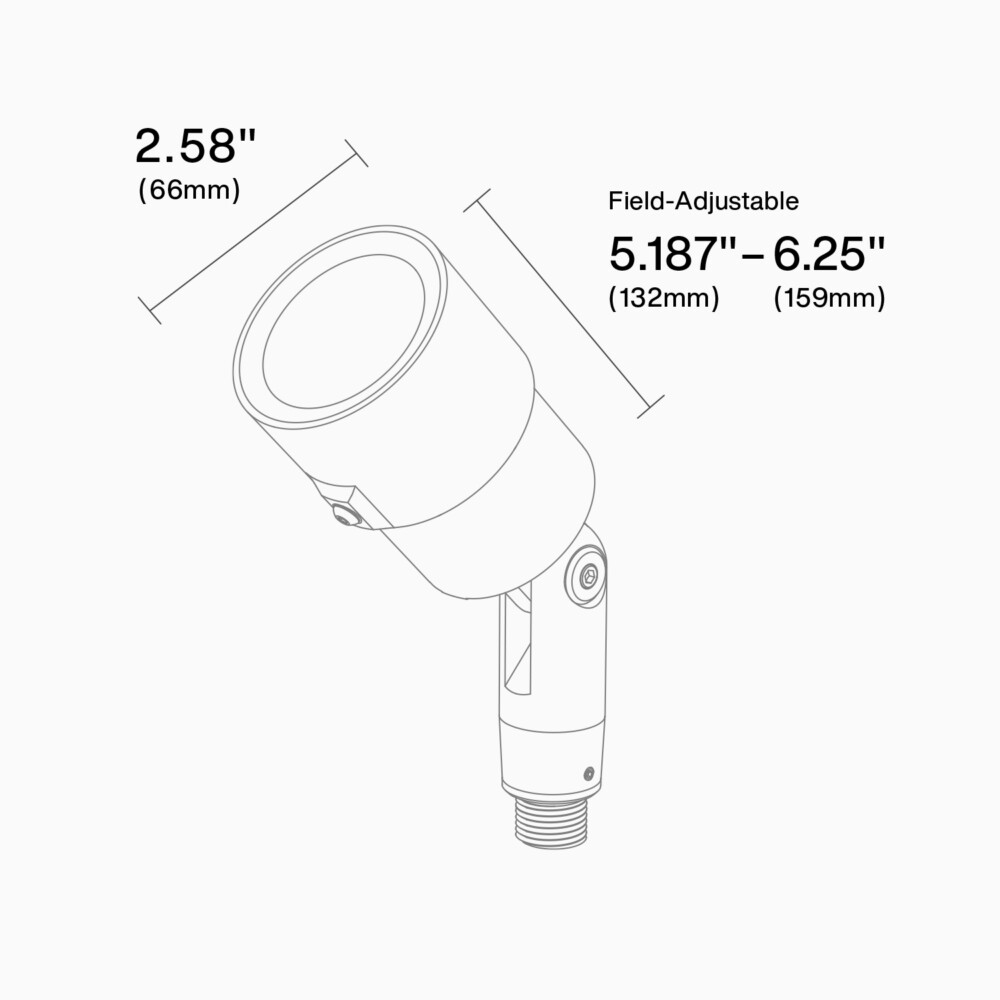

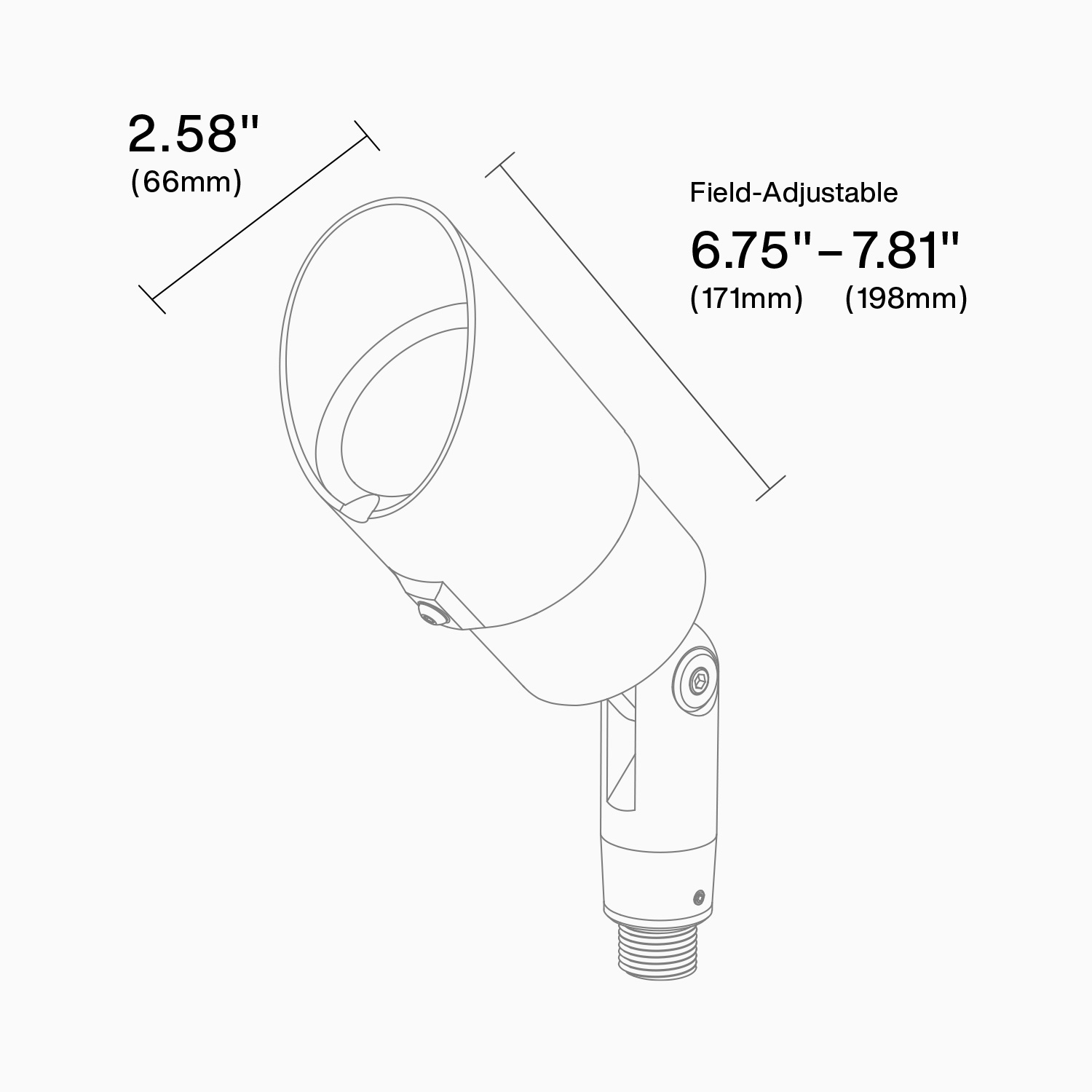

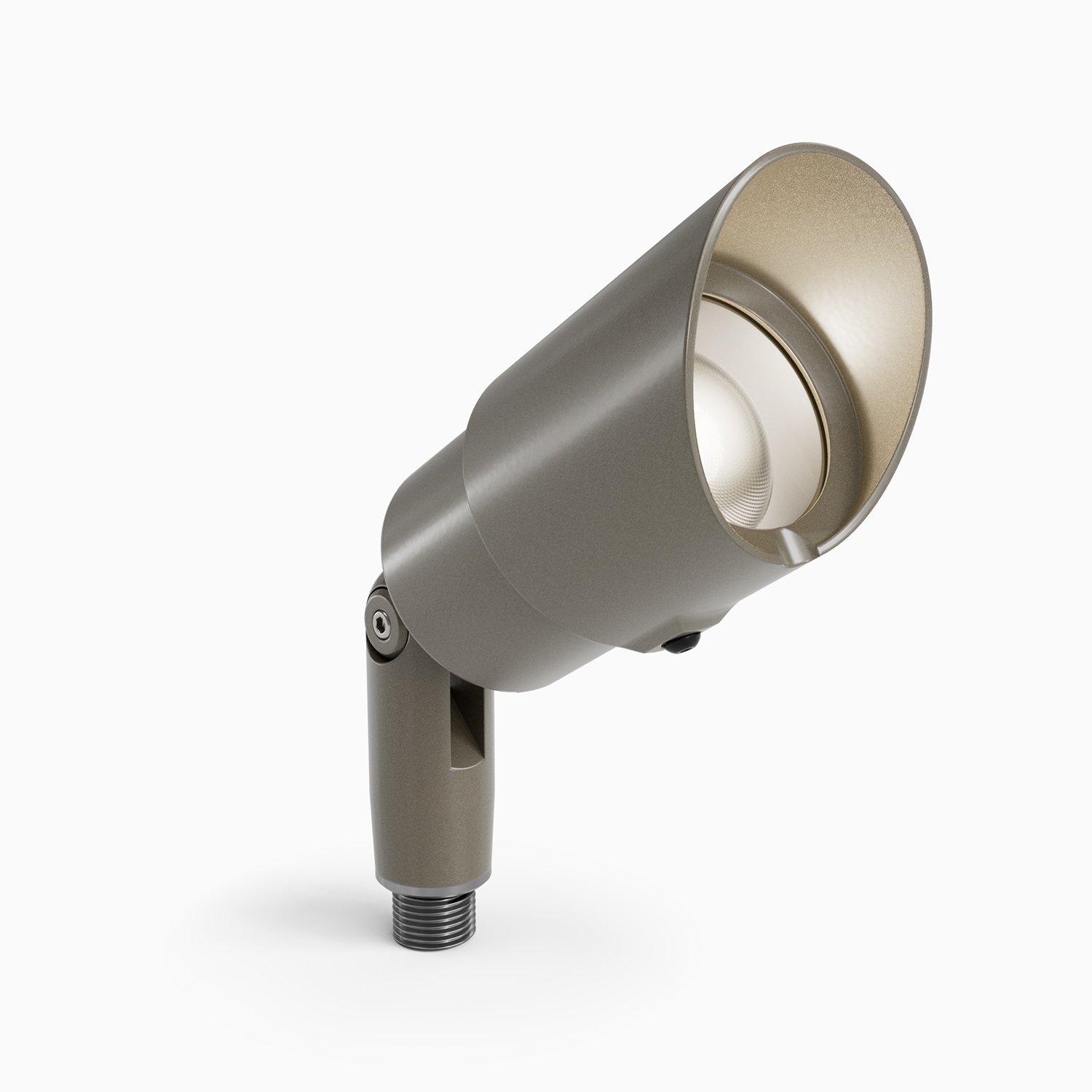

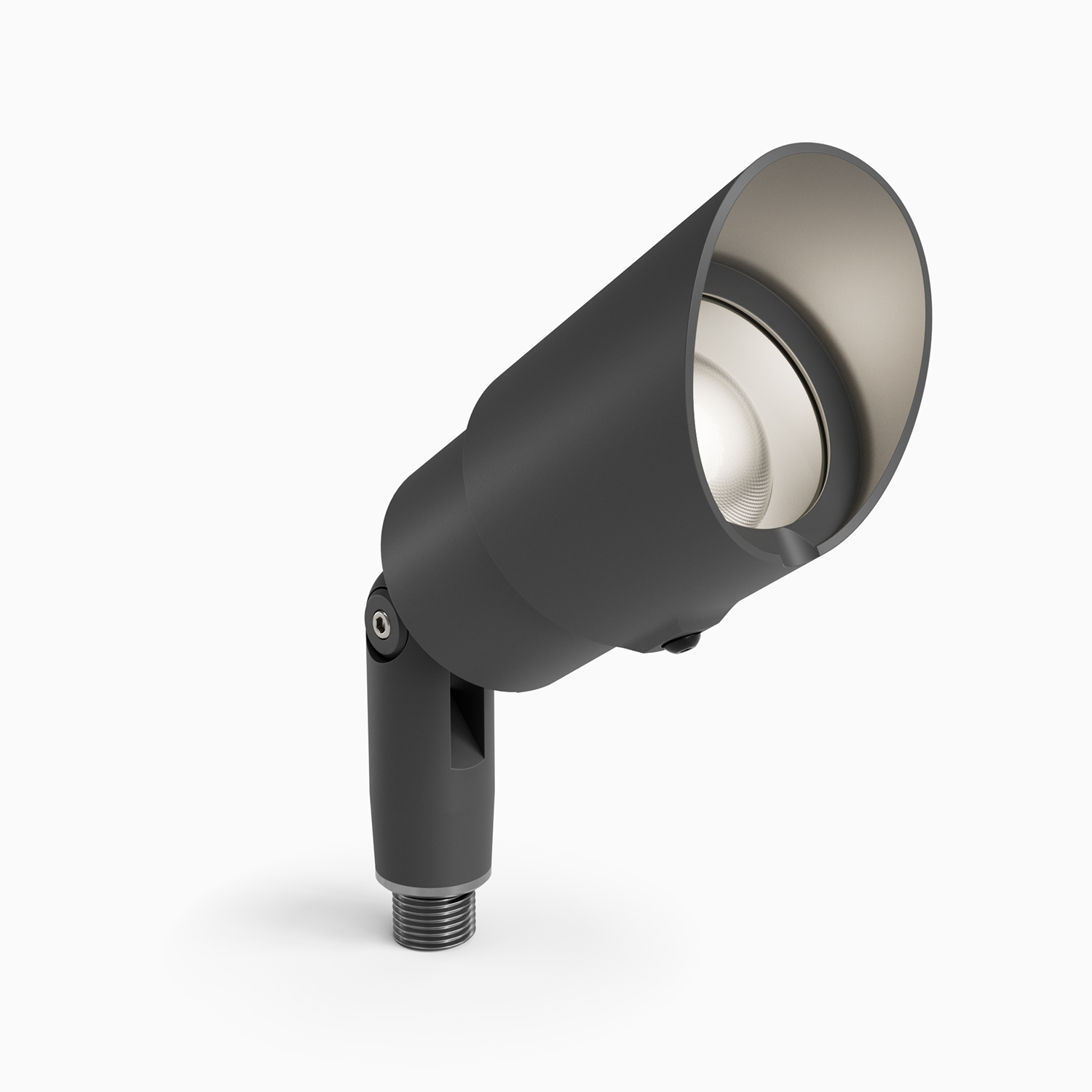

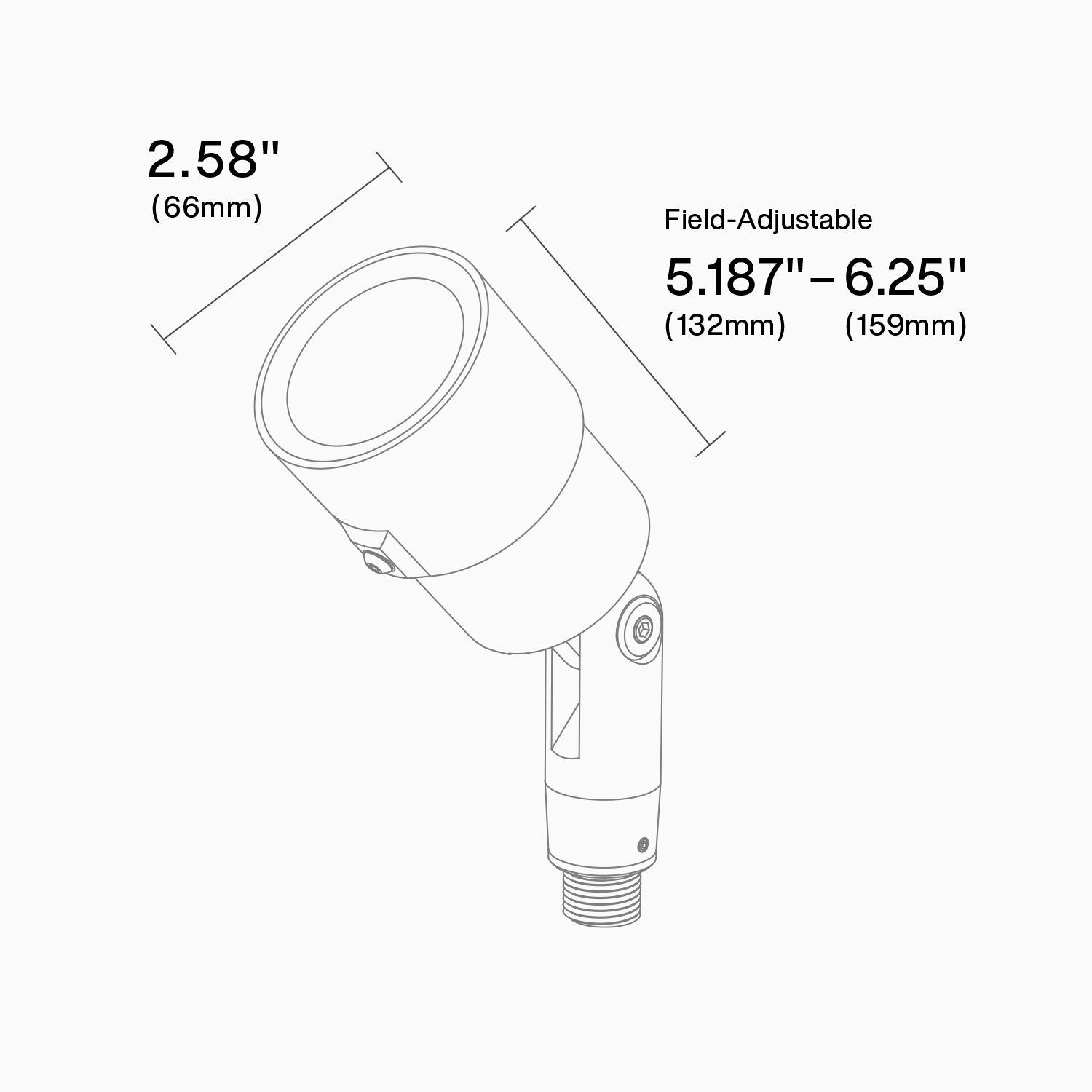

Two weeping hood styles available. The G Style includes an integrated Angled Glare Shield, while the F Style has a Flush Lens, without a glare shield. Both options provide exceptional glare control. (See page 4 of Spec Sheet for details)
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Standard CCT options are 2700K, 3000K, 3500K, and 4000K. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Consult factory for specialty LED details.
Listings
CSA Listed for Wet Location (UL1838), IP67 Standard. RoHS Compliant. Narrow-band Amber LED meets wildlife and turtle-safe lighting requirements.
Dimming
MLV or ELV Phase Control dimming.
